OMEGA IBTHXW Environmental Monitoring Device

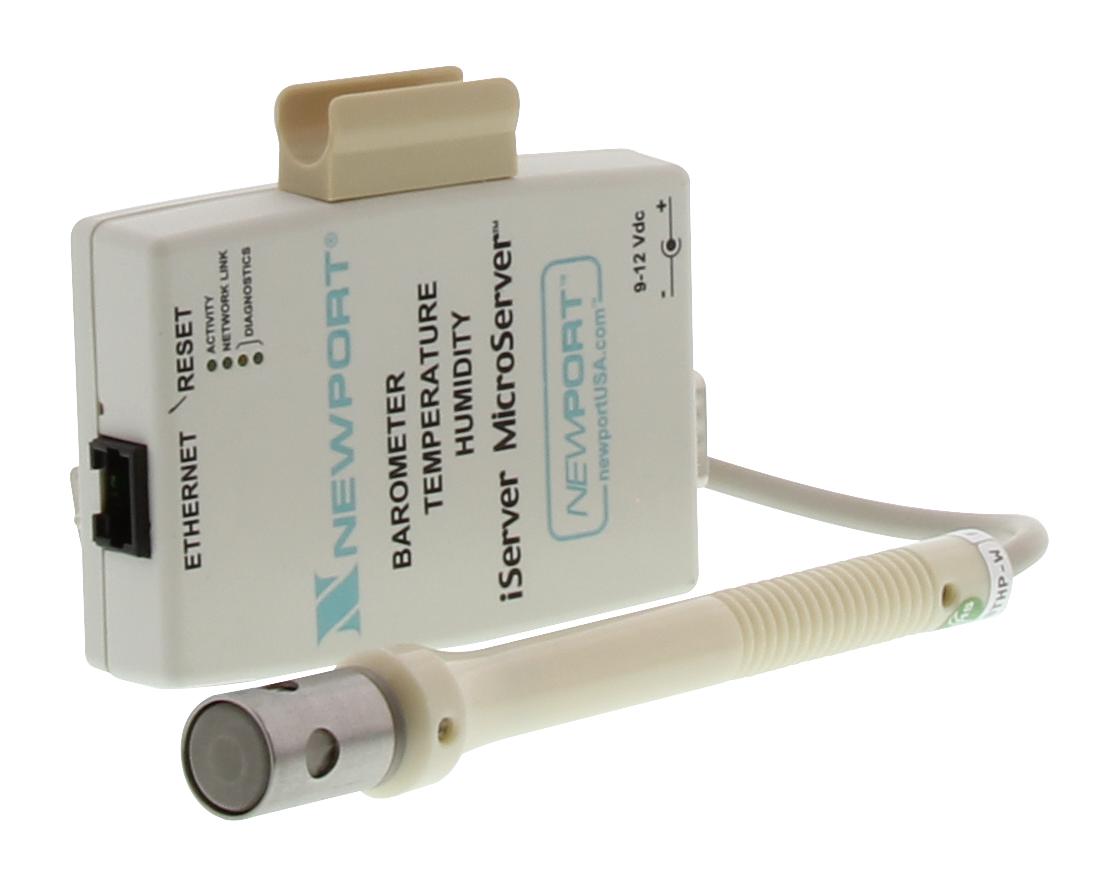

The Omega IBTHX-W is a versatile iServer MicroServer designed for monitoring and recording barometric pressure, temperature, humidity, and dew point. It features an Ethernet interface for real-time data access via web pages, with no need for extra software. The device includes a standard wand probe with a 152mm cable and DB9 connector, and supports adjustable chart scales for different time spans. Created with award-winning technology, it offers high accuracy (+2.0 mbar for pressure, +2% RH), multiple power options, and easy setup, ideal for clean rooms, laboratories, HVAC, and more. The package contains the device, probe, and accessories.
OMEGA IBTHXW Environmental Monitoring Device Specifications:
- Accuracy/Range: +2.0 mbar for pressure, 10 to 1100 mbar
- Resolution: 0.1 mbar
- Humidity Accuracy/Range: 10 to 90% RH: +2%, 5-10% & 90-95%: +3%, 0-5% & 95-100%: +4%
- Temperature Accuracy/Range: +0.5°C (wand probe) 5-45°C; +0.8°C for industrial probe (-40 to 85°C)
- Response Time: 8 seconds tau 63% (pressure), 5-30 seconds (temperature)
- Power: 9-12 VDC or 100-240VAC with power adapter
- Operating Temp: 0 to 70°C (32-158°F)
- Storage Temp: -40 to 85°C
- Communication: Ethernet (RJ45), TCP/IP, HTTP, SNMP, SMTP, NTP
- Display: 16-digit LCD (iBTX-SD)
- Memory: 2GB SD card (up to 7 years at 10 sec intervals)
- Relays: Two 1.5A relays for alarms
- Housing: Valox® 364 PBT case with wall mount bracket
Buy the Omega Series iServer MicroServer: Barometric Pressure Temperature Dew Point Monitoring
Purchase the Omega IBTHX-W online to seamlessly monitor and record barometric pressure, temperature, humidity, and dew point remotely. With real-time web access, adjustable charts, high accuracy, and easy setup, it is ideal for laboratories, clean rooms, HVAC, and storage facilities. The device includes a probe, web interface, and relays for alarms, providing a comprehensive solution for environmental data logging and remote management in industrial and research environments. Order now for reliable and continuous environmental control.
Buy Omega IBTHX-W now and experience unmatched reliability and performance in environmental monitoring.
