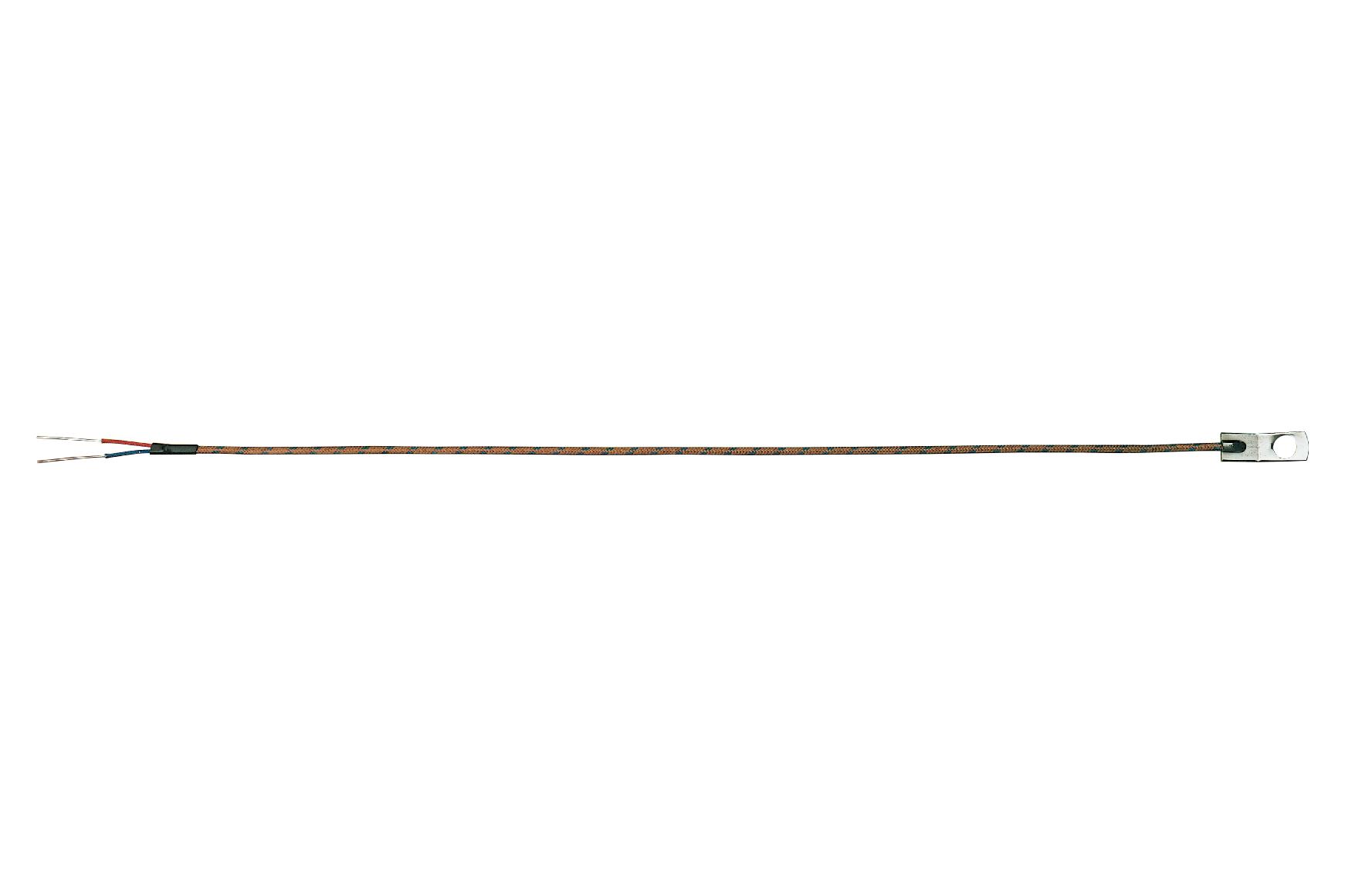

OMEGA WTK824 High-Temperature Thermocouple Assembly
The WT Series washer thermocouple assemblies are designed for precise temperature measurement, featuring 300 mm glass braided insulated wire and compatible with various screw sizes such as M3.5, M4, M4.5, and M6. These assemblies are built with a grounded junction and rugged design, ensuring durability and reliable performance in high-temperature environments up to 480°C (900°F). They feature stripped PFA insulated end leads, customizable lengths, and various connection options, making them ideal for surface mounting applications across industrial and manufacturing processes.
OMEGA WTK824 High-Temperature Thermocouple Assembly Specifications:
- Wire Length: 300 mm (12 inches), customizable over 60 inches with additional cost
- Wire Material: 20 AWG solid wire with glass braid insulation rated to 480°C (900°F)
- Thermocouple Type: J, K, T, or E (order suffix '-')
- Mounting: Easily mounts to various surfaces, compatible with #6, #8, #10, and M6 screw sizes
- Dimensions: #6 and #8 screw size: 6.5 mm W x 22 mm L; #10 and M6 screw size: 9 mm W x 25 mm L
- Environment: Suitable for high-temperature environments, glass rated to 480°C, with options for Kapton insulation
- Termination: Stripped leads standard, optional specialized terminations available with suffixes
- Connectivity: Options for various connectors including male, female, and miniature SMPW connectors, with custom lengths
Buy the Omega Series WT Thermocouple Assemblies: WTK824
Purchase your Omega Series WT thermocouple assembly WTK824 online today and experience reliable, high-temperature sensing for industrial applications. Featuring durable glass braid insulated wire, customizable lengths, and various connection options, this assembly is ideal for surface mounting in demanding environments up to 480°C. Its rugged design ensures long-lasting performance, making it perfect for manufacturing, processing, and safety systems. Order now and make your temperature measurement tasks efficient and dependable with fast shipping and expert support.
Order your Omega Series WT thermocouple assembly WTK824 today and ensure precise temperature measurement with durable, customizable high-temperature sensors.
