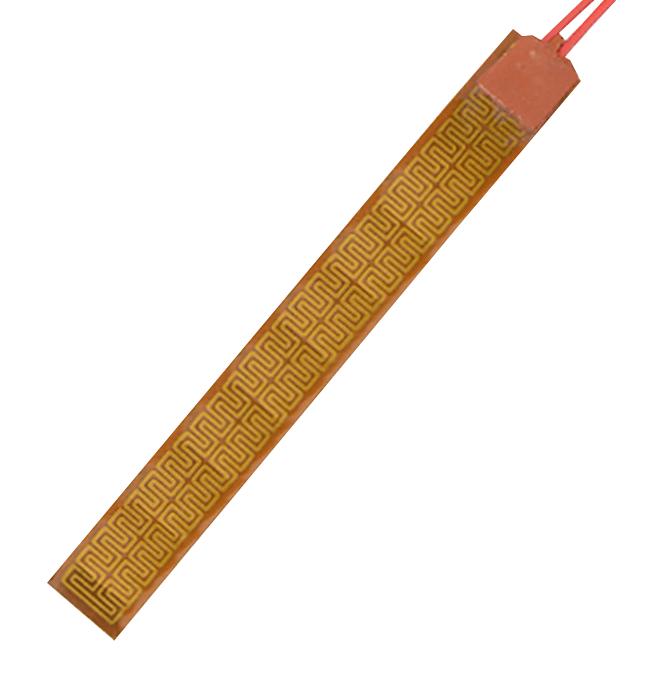

OMEGA KHLVA05045 Polyimide Flexible Heater
Polyimide film insulated flexible heater designed for precise and efficient heating applications. Available in various shapes, sizes, and wattages including 2.5, 5, or 10 W/in?, featuring etched foil design. Operating temperature ranges from -40°C to 149°C with a maximum thickness of 0.010 inches. Made with Inconel 600 resistive foil and encapsulated in polyimide material, these heaters offer high dielectric strength of 1250 VAC and excellent chemical resistance. Suitable for custom applications with optional pressure-sensitive adhesive for easy attachment and flexible installation.
OMEGA KHLVA05045 Polyimide Flexible Heater Specifications:
- Material: Polyimide film with Inconel 600 resistive foil
- Operating Temperature: -40°C to 149°C (-40°F to 300°F)
- Maximum Thickness: 0.010 inches
- Dielectric Strength: 1250 VAC for 1 second
- Watt Density: 2.5, 5, or 10 W/in?
- Wires: UL 1180, stranded, AWG 22, PTFE insulated
- Flexibility: Minimum Bending Radius of 0.032 inches
- Construction: Encased in polyimide with etched foil design
- Voltage Ratings: 115V, 230V, 28V available
- Pressure Sensitive Adhesive: Optional, compatible with 3M 468MP
- Size Options: Varied dimensions with custom options available
- Durability: High chemical and heat resistance suitable for demanding environments
Buy the Buy Omega Polyimide Film Heater Part Number KHLVA-0504 Online
Discover the high-performance Omega Polyimide Flexible Heater, engineered for precise temperature control in diverse industrial and laboratory environments. Featuring etched foil design, high dielectric strength, and ultra-thin construction, this heater adapts seamlessly to complex geometries. Available in multiple power densities and sizes, with optional pressure-sensitive adhesive for easy installation. Whether for heating chemical processing, temperature-sensitive devices, or specialized equipment, order this reliable, customizable heater online today for quick delivery and superior performance in demanding conditions.
Order your Omega SeriesKHLVA-0504 polyimide flexible heater today and experience reliable, customizable heating performance for your industrial applications.
Frequently Asked Questions
Where can I buy OMEGA KHLVA05045?
You can click on the BUY or RFQ button to purchase KHLVA05045 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KHLVA05045?
You can download the KHLVA05045 datasheet or visit the OMEGA website for support.
Who is the manufacturer of KHLVA05045?
OMEGA
