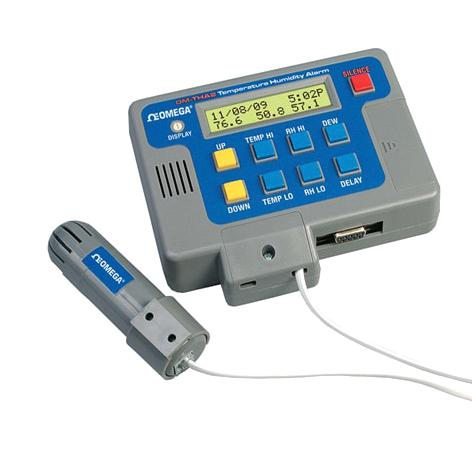

OMEGA OMTHA2U Temperature Humidity Monitor
The OM-THA2-U is a multi-function monitoring unit designed to measure temperature, relative humidity, and dew point. It features a user-friendly digital display, a remote sensor probe with a 4.5-meter cable, and a relay contact for remote alarms. The device records data for up to 170 days, includes both audible and visual alarms for out-of-range conditions, and connects to a computer via USB. Free Windows software is provided for data management and analysis. The package includes the alarm unit, user guide, Windows software on CD, and a USB interface cable.
OMEGA OMTHA2U Temperature Humidity Monitor Specifications:
- Sensor Probe Operating Temperature Range: -40 to 60°C (-40 to 140°F)
- Sensor Humidity Range: 0 to 90% RH non-condensing
- Sensor Accuracy: ±1°C, ±2% RH
- Sensor Resolution: 0.1°C, 0.1% RH
- Sensor Dimensions: 9.65 L x 2.79 cm diameter (3.8 x 1.1 inches)
- Sensor Cable Length: 4.6 m (15 feet)
- Base Unit Operating Temperature Range: 0 to 54°C (32 to 132°F)
- Base Unit Storage Temperature: -18 to 54°C (0 to 130°F)
- Base Unit Power Supply: 12 to 24 Vac/Vdc, 0.78W
- Battery Backup: 9V alkaline for 25 hours
- Relay Contact: 5A/250V NO/NC dry contact
- Dimensions of Base Unit: 14 L x 11.4 W x 4.1 cm (5.5 x 4.5 x 1.6 inches)
- Weight of Base Unit: 245 g (8.6 oz)
- Logging Sample Rate: 1 sec to 30 min, user-selectable
- Data Storage Capacity: 8150 samples for temperature, humidity, dew point
- Compatibility: Windows XP/Vista/7/8/10 32/64-bit
Buy the Buy Omega OM-THA2-U Temperature Humidity Alarm Part Number OMTHA2U Online
Purchase the Omega OM-THA2-U temperature humidity alarm online today to ensure accurate environmental monitoring with data logging up to 170 days, remote sensor, and audible and visual alarms. Its easy-to-read display and USB connectivity simplify data management, making it ideal for laboratories, refrigerated transport, greenhouses, and food storage. Equipped with a relay for remote alarms and user-configurable settings, this versatile device offers reliable performance, flexible logging intervals, and compatibility with Windows software, ensuring comprehensive environmental control and record-keeping for critical applications.
Order your Omega SeriesOM-THA2-U temperature and humidity alarm today and ensure reliable environmental monitoring for sensitive applications.
