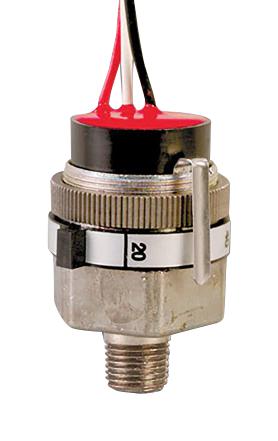

OMEGA PSW623 Pressure and Vacuum Switch
The pressure and vacuum switches in the PSW-620/PSW-630 series are economical, reliable devices designed for pressure ranges up to 500 psi and vacuum applications. Featuring external pressure scales and easy setpoint adjustments, these switches have silver contacts rated for 5 A at 250 Vac and gold-plated contacts suitable for TTL or dry contacts. Constructed with stainless steel wetted parts, zinc alloy enclosures, and rated for temps from -55°C to 105°C, they deliver precise control with a 3-year warranty and robust cycling capabilities. Versatile wiring and compact dimensions enhance their adaptability in various industrial systems.
OMEGA PSW623 Pressure and Vacuum Switch Specifications:
- Process Temperature: -55 to 105°C (-65 to 221°F)
- Repeatability: +2% of maximum system pressure
- Cycling: Not to exceed 20 cycles/minimum
- Warranty: 3 years / 1 million cycles
- Proof Pressure: 150% maximum pressure
- Wetted Parts: 17-7 PH stainless steel, loctite sealing compound #271, ZA8 chromate finish
- Enclosure: Zinc alloy, chromate finish
- Dimensions: 48 mm L x 28 mm Dia (1.9 x 1.1 inches)
- Pressure Port: ¼-27 MNPT
- Electrical Connection: 300 mm pigtail leads, 20 AWG, polyvinyl insulated
- Weight: approx. 57g (2.02 oz)
Buy the Economical Series PSW Pressure Switch: PSW623
Order the reliable pressure and vacuum switch designed for system pressures up to 500 psi. Featuring easy setpoint adjustment, stainless steel wetted parts, and a durable zinc alloy enclosure, this switch ensures precise, consistent operation in demanding industrial environments. It comes with a comprehensive operator's manual and offers excellent repeatability and cycling performance, backed by a 3-year warranty. Perfect for applications requiring robust control with quick wiring options and versatile mounting features for optimal system integration.
Buy ECONOMICAL SERIES PSW-623 now and experience reliable pressure control with precise setpoint adjustments and durable stainless steel wetted parts.
Frequently Asked Questions
Where can I buy OMEGA PSW623?
You can click on the BUY or RFQ button to purchase PSW623 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PSW623?
You can download the PSW623 datasheet or visit the OMEGA website for support.
Who is the manufacturer of PSW623?
OMEGA
