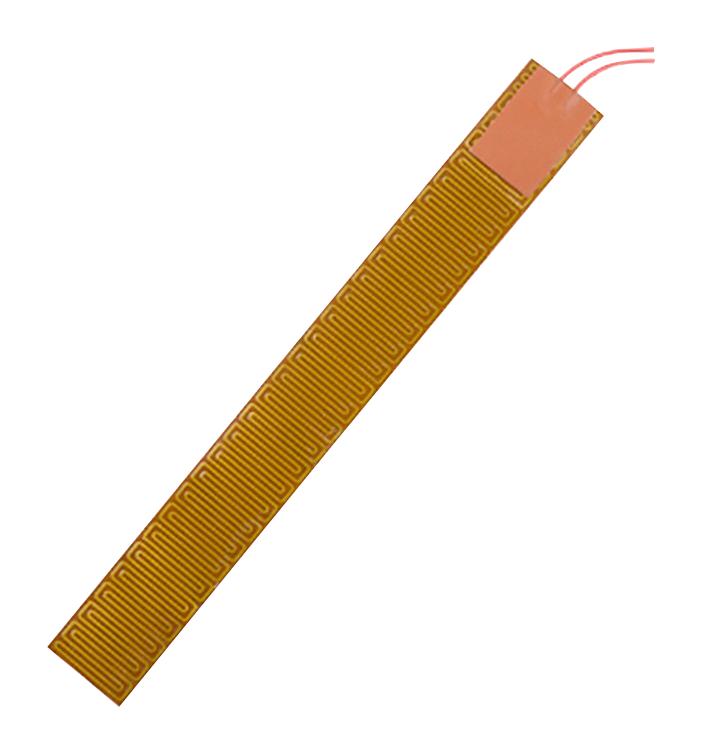

OMEGA KHLVA2025 Polyimide Heater
Polyimide film insulated flexible heater is designed with etched foil technology, offering high chemical resistance, flexible fitting, and maximum thickness of 0.010 inches. It operates from -40°C to 149°C with watt densities of 2.5, 5, or 10 W/in² across voltages of 115, 230V, and 28V. Suitable for applications requiring uniform heat distribution, these heaters feature PTFE insulated wire, optional pressure-sensitive adhesive, and robust dielectric strength of 1250 Vac, making them ideal for various industrial processes needing reliable flexible heating solutions.
OMEGA KHLVA2025 Polyimide Heater Specifications:
- Film Material: Polyimide with etched foil design
- Maximum Thickness: 0.010 inches
- Operating Temperature: -40°C to 149°C
- Watt Densities: 2.5, 5, or 10 W/in²
- Voltage: 115V, 230V, 28V
- Dielectric Strength: 1250 Vac for 1 second
- Wire Insulation: PTFE, UL 1180, stranded AWG 22
- Bending Radius: 0.032 inches
- Construction: Polyimide encasing with Inconel 600 resistive foil
- Optional Pressure Sensitive Adhesive (PSA) available
- Features: Flexible, chemical resistant, uniform heat distribution
- Applications: Industrial heating, chemical processing, moisture-sensitive environments
Buy the Buy Omega Polyimide Heater Part Number KHLVA2025 Online
Order the Omega Polyimide Heater KHLVA2025 online today for a high-performance, flexible heating solution. Engineered with etched foil technology, it offers excellent chemical resistance and uniform heat distribution across a wide temperature range. Available in multiple wattages, voltages, and sizes, this heater is suitable for demanding industrial, chemical, and moisture-sensitive applications. Its robust construction, optional pressure-sensitive adhesive, and UL-approved PTFE insulated wire enable easy installation and dependable long-term performance. Purchase now to benefit from fast shipping and expert support.
Get Omega Polyimide Heater KHLVA2025 today—designed for reliable, uniform heating with chemical resistance for industrial applications.
Frequently Asked Questions
Where can I buy OMEGA KHLVA2025?
You can click on the BUY or RFQ button to purchase KHLVA2025 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KHLVA2025?
You can download the KHLVA2025 datasheet or visit the OMEGA website for support.
Who is the manufacturer of KHLVA2025?
OMEGA
