OMEGA KMQSS125G6 Subminiature Thermocouple

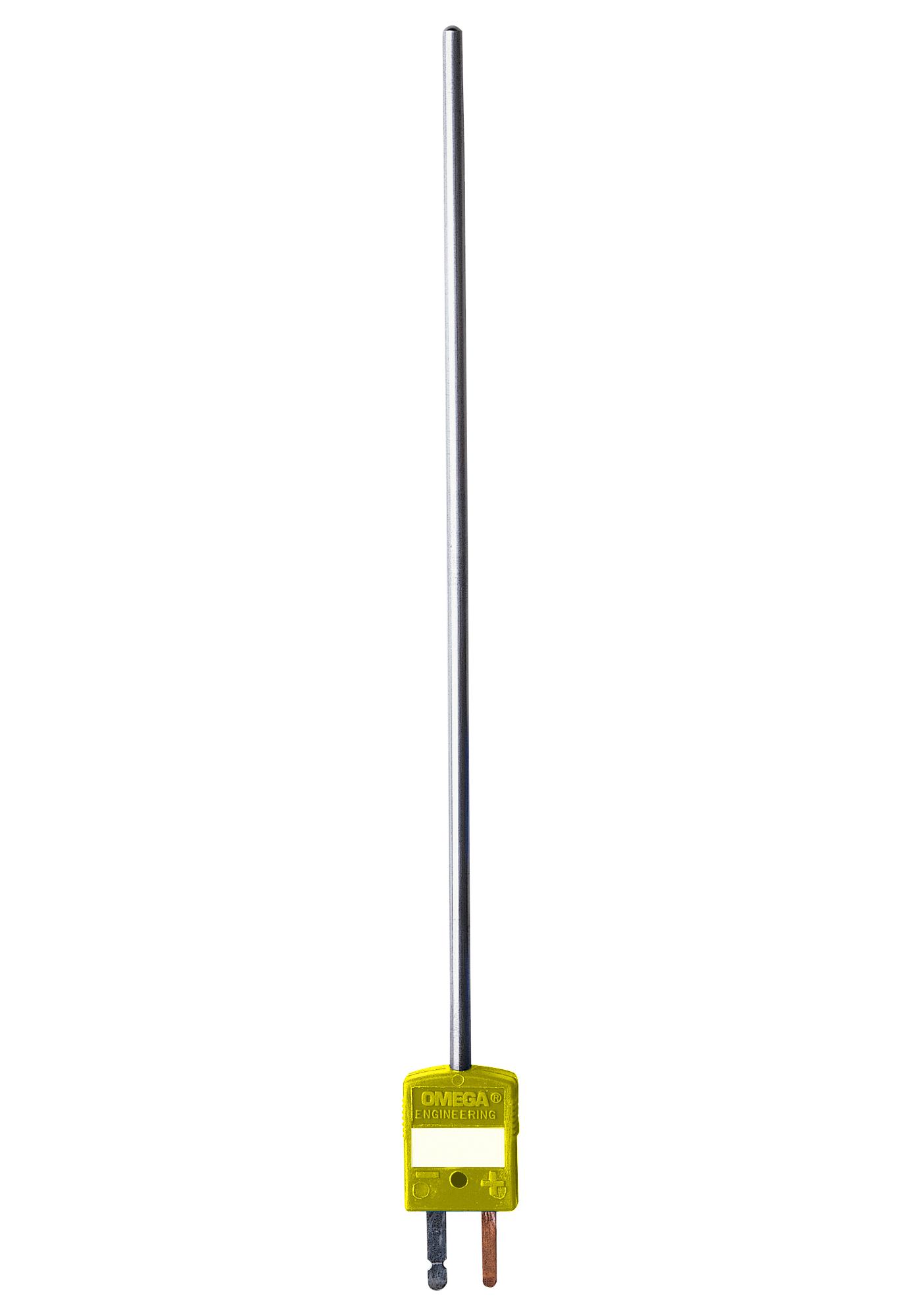

This subminiature quick-disconnect thermocouple probe features a Type K sensor with a 0.125-inch diameter stainless steel sheath and a glass-filled nylon connector body. Rated to 220°C (425°F), it offers versatile mounting options with grounded, ungrounded, or exposed junctions. Standard lengths are 6 and 12 inches, with sheath diameters from 0.010 to 0.125 inches. It includes a mating connector, cable clamp, and locking clip, providing reliable, easy-to-install temperature measurement solutions in industrial applications involving high temperatures and precise control.
OMEGA KMQSS125G6 Subminiature Thermocouple Specifications:
- Sensor Type: Type K Thermocouple
- Sheath Material: Stainless Steel (304, 310, 316, 321, Inconel options available)
- Sheath Diameter: 0.010 to 0.125 inches
- Maximum Temperature: 220°C (425°F)
- Connector Body: Glass Filled Nylon
- Lengths Available: 6 and 12 inches, other lengths optional
- Junction Types: Grounded, Ungrounded, or Exposed
- Color-Coded SMP Miniature Connector Termination
- Inclusion: Mating connector, cable clamp, locking clip
- Compatibility: Miniature quick-disconnect system
- Probe Diameter: Smaller probes supplied with removable connector, larger probes molded with connector
- Additional: Custom lengths available upon request
Buy the Omega Series Thermocouple: KMQSS 125G-6
Purchase the Omega Series Subminiature Thermocouple with stainless steel sheath and nylon connector today. Designed for high-temperature environments, it offers reliable and accurate temperature measurements. The probe features a Type K thermocouple sensor with 0.125-inch diameter, suitable for use in industrial applications. It comes with standard 6 or 12-inch lengths, includes a mating connector, cable clamp, and locking clip for secure installation. Perfect for precise temperature control and monitoring, available for quick online ordering.
Get Omega Series Thermocouple KMQSS 125G-6 today—built for precision and long-lasting durability in industrial temperature monitoring.
Frequently Asked Questions
Where can I buy OMEGA KMQSS125G6?
You can click on the BUY or RFQ button to purchase KMQSS125G6 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KMQSS125G6?
You can download the KMQSS125G6 datasheet or visit the OMEGA website for support.
Who is the manufacturer of KMQSS125G6?
OMEGA
