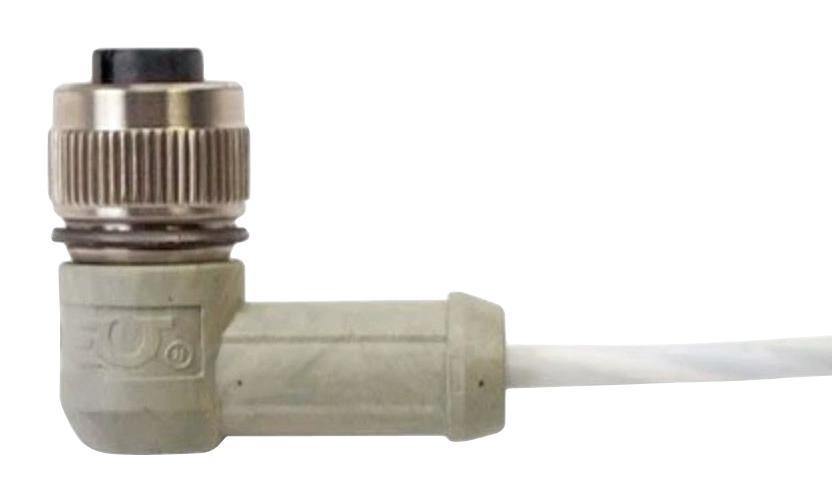

OMEGA M12CMT24SSPCRF2 high-temperature sensor extension cable
The M12CM-RTD Series high-temperature extension cables are engineered for industrial probes, sensors, and transmitters, supporting temperatures up to 205°C (400°F). Featuring FEP insulation and LCP over-molded M12 connectors, these cables ensure moisture resistance with IP65 ratings and vibration testing per MIL-STD-202G. Available in lengths from 2 to 20 meters, they include 4-stranded, #24 AWG, silver-plated copper conductors, either straight or right-angled female connectors, and stripped leads for flexible installation across various industrial applications.
OMEGA M12CMT24SSPCRF2 high-temperature sensor extension cable Specifications:
- Maximum Operating Temperature: 205°C (400°F)
- Insulation Material: FEP
- Over-molded Material: LCP
- Conductors: 4-stranded, #24 AWG, silver plated copper
- Connector Types: Straight or Right Angled Female
- Cable Diameter: approximately 3.3 mm (0.13 inch)
- Individual Conductor Resistance: approximately 0.08 Ω per meter
- Lengths Available: 2, 5, 10, 15 and 20 meters
- Moisture Resistance: IP65
- Vibration Tested to MIL-STD-202G, Method 204D, Test Condition A (10g’s from 10 to 500 Hz)
Buy the Industrial Extension Cables – Reliable Probe and Sensor Connectors for Industrial Applications
Order the high-temperature sensor extension cables from the M12CM-RTD Series online today. Designed for industrial probes, sensors, and transmitters, these cables support temperatures up to 205°C (400°F) with IP65 moisture resistance and vibration durability. Available in lengths from 2 to 20 meters, they feature FEP insulation, LCP over-molded M12 connectors, and 4-stranded, #24 AWG, silver-plated copper conductors. Easily integrate into your industrial setup for reliable and durable sensor signal transmission.
Get high-temperature M12CM-RTD Series extension cables today—built for precision, moisture resistance, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy OMEGA M12CMT24SSPCRF2?
You can click on the BUY or RFQ button to purchase M12CMT24SSPCRF2 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part M12CMT24SSPCRF2?
You can download the M12CMT24SSPCRF2 datasheet or visit the OMEGA website for support.
Who is the manufacturer of M12CMT24SSPCRF2?
OMEGA
