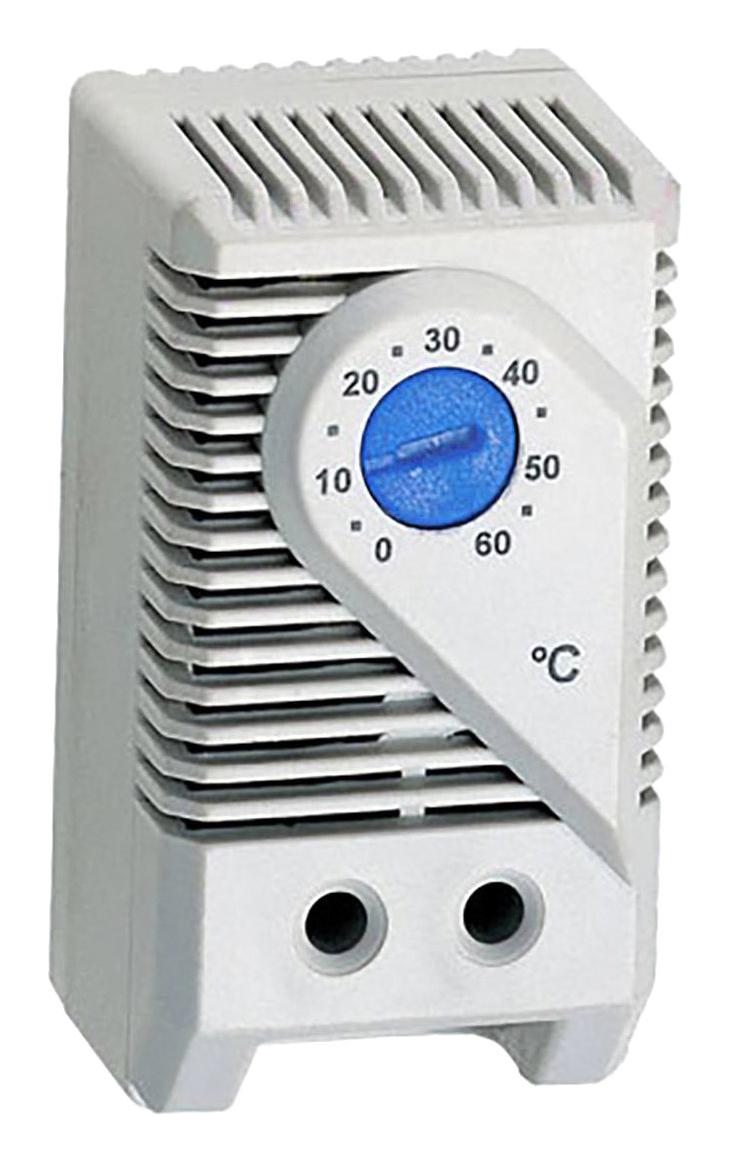

OMEGA KT011419 Thermostat
The KT011419 is a high-quality, DIN rail mountable thermostat designed for precise temperature control in various industrial and HVAC applications. Featuring a bi-metal sensor, it offers a switching capacity of 10 A resistive and 2 A inductive at 250 Vac, with an adjustable temperature range between 32°F and 140°F. Its compact plastic housing is UL94V-0 rated, with dimensions of 60 mm by 33 mm by 43 mm. Suitable for environments requiring NEMA 2 (IP20) protection, it ensures reliable operation over 100,000 cycles, making it perfect for temperature regulation in complex systems.
OMEGA KT011419 Thermostat Specifications:
- Sensor Element: Thermostatic bi-metal
- Maximum Tolerance: +7°F (4K)
- Switching Difference (Hysteresis): 12.6°F +5.4°F (7°C +3K)
- Service Life: 100,000 cycles
- Switching Capacity (Max Load): 10 A resistive/2 A inductive @ 250 Vac, 15 A resistive/2 A inductive @ 120 Vac, DC 30W
- Minimum Load: 20 mA (all voltages)
- Connections: 2-pole terminal for AWG 14 max (2.5 mm²)
- Mounting: Clip for 35 mm DIN rail (EN 50022)
- Dimensions: 60 mm H x 33 mm W x 43 mm D
- Housing: Plastic, UL94V-0
- Weight: 40 g (1.4 oz)
- Protection Type: NEMA 2 (IP20)
- Storage Temperature: -45 to 70°C (-49 to 158°F)
- Operating Temperature Range: 32 to 140°F (0 to 60°C)
Buy the SMALL THERMOSTAT Series KT011419: 32 to 140°F
Browse and buy the SMALLEST HIGH-QUALITY Thermostat online today. This DIN rail mountable device features a bi-metal sensor, 10A resistive capacity, and adjustable temperature range from 32°F to 140°F. With a compact plastic UL94V-0 rated housing, it is suitable for industrial environments requiring reliable, long-lasting temperature regulation. Its NEMA 2 (IP20) protection ensures safety and durability, handling up to 100,000 cycles for continuous operation. Perfect for HVAC, automation, and control systems, order now for fast delivery.
Order your SMAL LTHERMOSTAT Series KT011419 today and ensure precise temperature control in your industrial or HVAC systems.
Frequently Asked Questions
Where can I buy OMEGA KT011419?
You can click on the BUY or RFQ button to purchase KT011419 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KT011419?
You can download the KT011419 datasheet or visit the OMEGA website for support.
Who is the manufacturer of KT011419?
OMEGA
