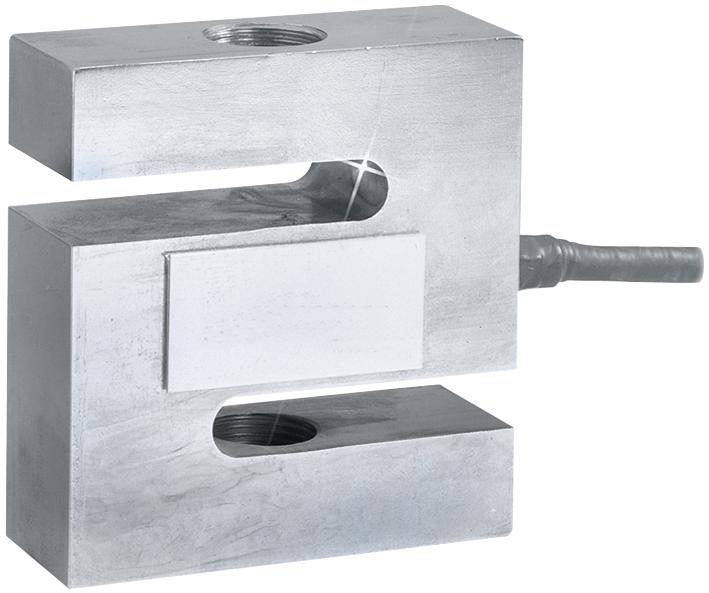

OMEGA LC10150 Stainless Steel Load Cell
The LC10150 is a high-accuracy stainless steel load cell designed for harsh industrial environments, suitable for tension and compression applications. It offers excellent linearity and repeatability with a 0.25% accuracy and features a rugged construction with full stainless steel design for durability. The load cell supports capacities from 0-25 lb up to 0-40,000 lb and incorporates 5-point calibration, making it versatile for multiple load measurement applications. It includes shielded cable and standard NIST traceability for precise, reliable performance in demanding conditions.
OMEGA LC10150 Stainless Steel Load Cell Specifications:
- Material: 17-4 PH stainless steel
- Capacities: 0-25 lb to 0-40,000 lb
- Accuracy: 0.25%
- Excitation: 10 Vdc, 15 Vdc max
- Output: 3 mV/V +0.0075 mV/V
- Linearity: +0.03% FSO (40K), +0.02% FSO (40K), +0.01% FSO (40K)
- Zero Balance: +1% FSO
- Operating Temp Range: -40°C to 93°C (-40°F to 200°F)
- Compensated Temp Range: 17°C to 71°C (60°F to 160°F)
- Temperature Effects: Zero: 0.002% FSO/°C, Span: 0.002% FSO/°C
- Overload: Safe 150%, Ultimate 300% of capacity
- Resistance: Input 350 ±10 Q, Output 350 ±10 Q
- Dimensions: Length varies with model, typical widths 25-51 mm, heights 13-38 mm
- Construction: Fully stainless steel for durability in harsh environments
Buy the Buy Stainless Steel Load Cell Part Number LC10150 Online
Purchase the Stainless Steel Load Cell LC10150 online to enjoy quick delivery and dependable performance. Designed for harsh environments, it offers high accuracy, durability, and versatile capacities up to 40,000 lb. Whether for tension or compression, this load cell ensures precise readings with 0.25% accuracy, supported by 5-point calibration and NIST traceability. Ideal for industrial applications, it features a full stainless steel construction and shielded cable for protection against demanding conditions. Shop now to enhance your measurement capabilities with this reliable, high-quality load cell.
Order your Stainless Steel Load Cell LC10150 today and ensure accurate, reliable measurements in demanding industrial conditions.
Frequently Asked Questions
Where can I buy OMEGA LC10150?
You can click on the BUY or RFQ button to purchase LC10150 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC10150?
You can download the LC10150 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC10150?
OMEGA
