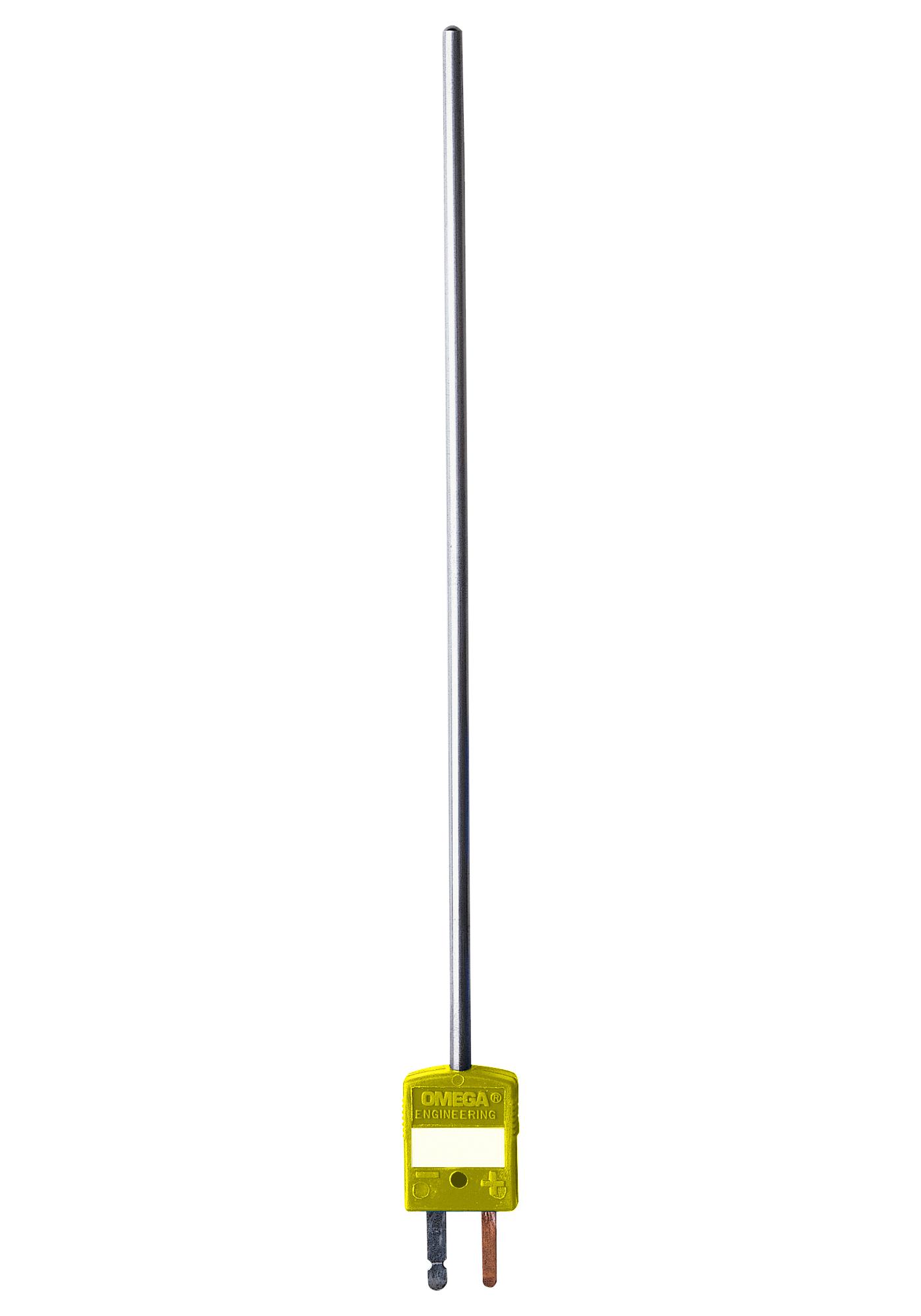

OMEGA KMQSS062G6 Miniature Thermocouple Connectors
These quick disconnect thermocouples with miniature connectors are designed for industrial temperature measurement applications. They feature a variety of sheath materials including stainless steel, Inconel, and Super OMEGACLAD® XL, with lengths typically 6 and 12 inches. Their glass-filled nylon connector bodies ensure durability and insulation. Suitable for Type J, K, E, T, and N thermocouples, they can be configured with grounded, ungrounded, or exposed junctions. The probes include mating connectors, cable clamps, and locking clips, with sizes ranging from 0.010 to 0.125 inches diameter, rated up to 220°C, offering reliable performance in harsh environments.
OMEGA KMQSS062G6 Miniature Thermocouple Connectors Specifications:
- Connector Body: Glass-filled nylon
- Rated Temperature: 220°C (425°F)
- Sheath Materials: 304, 310, 316, 321 stainless steel, Inconel, Super OMEGACLAD XL
- Sheath Diameters: From 0.010 to 0.125 inches
- Lengths Available: 6 and 12 inches; custom lengths upon request
- Junction Types: Grounded, ungrounded, or exposed
- Color-Coded SMP miniature connector termination
- Included Accessories: Mating connector, cable clamp, locking clip
- Probe Diameters: 0.010 inches (Type N), up to 0.125 inches
- Compatible Thermocouple Types: J, K, E, T, N
Buy the Omega KMQSS – Reliable Thermocouple Connectors for Industrial Applications
Enhance your industrial temperature monitoring with Omega miniature thermocouple connectors, featuring durable sheath materials like stainless steel and Inconel. These quick disconnect probes are rated up to 220°C and available with various sheath diameters, lengths, and junction types, including grounded and ungrounded options. The easy-to-use connectors include mating parts, cable clamps, and locking clips for secure installation. Designed for Type J, K, E, T, and N thermocouples, they provide accurate and reliable temperature measurement in demanding environments, all available for quick online ordering.
Buy Omega KMQSS quick disconnect thermocouples now and experience unmatched reliability and performance in harsh industrial environments.
