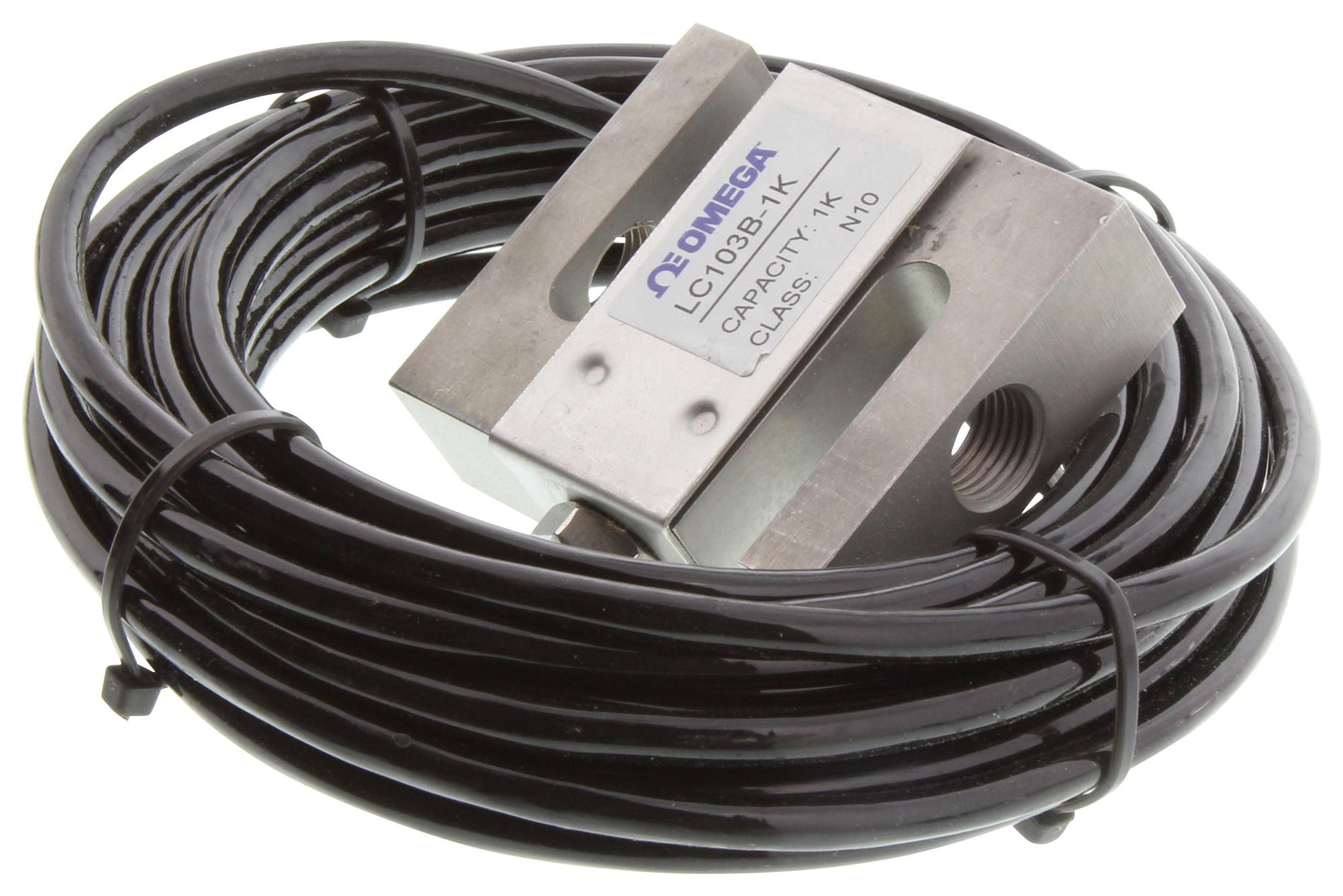

OMEGA LC103B1K Stainless Steel Load Cell
Omega's LC103B series stainless steel S-Beam load cells deliver high accuracy and durability for tension and compression applications. Designed for environmental resilience, these load cells feature robust stainless steel construction with IP67 ingress protection, making them suitable for harsh conditions. They provide linear performance, meet OIML R60 C3 accuracy standards, and are ideal for truck weighing, tank, hopper, and suspended load measurement. Their compact design ensures easy installation while maintaining precise force measurement. Recognized for legal metrology compliance, these load cells offer reliable, long-term operation in demanding industrial settings.
OMEGA LC103B1K Stainless Steel Load Cell Specifications:
- Accuracy: class C3
- Approvals: OIML R60
- Output sensitivity: 3.04 ± 0.008 mV/V (<25 lbs/11 kg: 2.0 ± 0.006 mV/V)
- Maximum load cell intervals: 3000
- Verification ratio: 10000
- Combined error: ±0.020% FS
- Overload capacity: 150% FS (safe), 300% FS (ultimate)
- Zero balance: ±1.0% FS
- Excitation voltage: 5-12 VDC (recommended), max 18 VDC
- Input resistance: 430 ± 60 Ω
- Output resistance: 351 ± 2 Ω
- Insulation resistance: ≥ 5000 MΩ at 50 VDC
- Operating temperature: -10°C to +40°C
- Storage temperature: -40°C to +70°C
- Element material: Stainless steel
- Ingress protection: IP67
- Recommended torque: 1/4" UNF: 18 in•lbf, 1/2" UNF: 55 in•lbf, 3/4" UNF: 330 in•lbf, 1 1/8" UNF: 1070 in•lbf
Buy the Omega Series LC103B Stainless Steel Load Cell: LC103B-1K
Purchase Omega LC103B-1K stainless steel S-Beam load cell online today and enjoy reliable, high-precision force measurement suitable for tension and compression. Designed for industrial uses like tank weighing, hopper measurement, and suspended loads, this load cell features robust stainless steel construction, IP67 waterproof protection, and precision calibration. Its easy-to-install design ensures superior linearity and temperature stability. Whether for harsh environments or legal metrology applications, this load cell guarantees durability, accuracy, and consistent performance, providing a trusted solution for your weighing needs.
Get Omega LC103B-1K today—built for precision and long-lasting durability in tough industrial environments.
Frequently Asked Questions
Where can I buy OMEGA LC103B1K?
You can click on the BUY or RFQ button to purchase LC103B1K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC103B1K?
You can download the LC103B1K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC103B1K?
OMEGA
