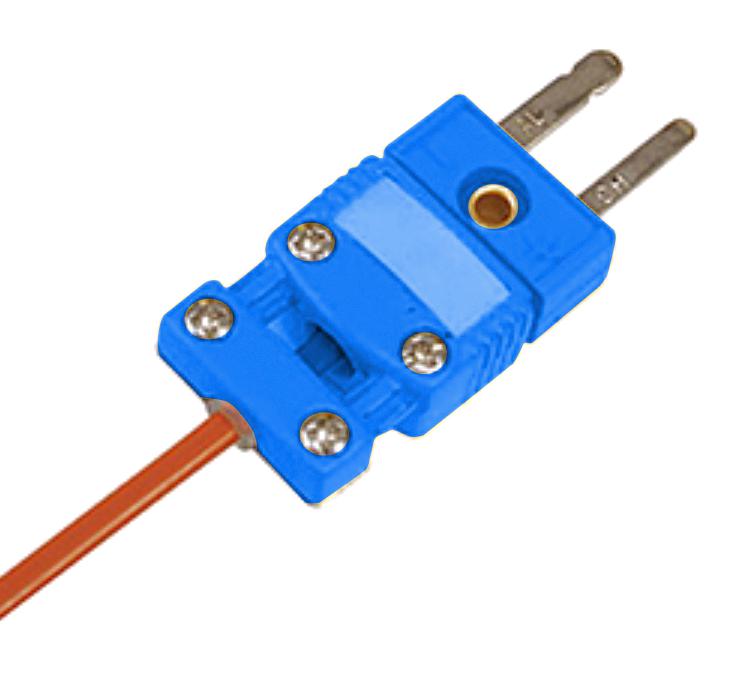

OMEGA SMPWCCTIM Miniature Connector
The SMPW-CC Series is a miniature connector featuring an integral cable clamp and strain relief with grommet, designed for straightforward wire termination without the need for wire loops. Made from glass-filled nylon offering high temperature resistance from -29°C to 180°C, it supports wire sizes from 40 AWG up to 20 AWG, accepting stranded or solid wire. The connector includes captive screws, an internal wire divider, a write-on window, and accommodates straight wires with quick connect washers. Sold individually or in bulk packs, it's ideal for compact, reliable electrical connections in diverse industrial applications.
OMEGA SMPWCCTIM Miniature Connector Specifications:
- Material: Glass-filled nylon rated from -29°C to 180°C (-20°F to 356°F)
- Wire Range: 40 AWG to 20 AWG, accepts stranded or solid wire
- Connector Body Diameter: 0.22 inches (5.5 mm)
- Back Plate: Supplied with 0.5 inch (12.7 mm) dimensions
- Screws: Captive, combination head, 0.22 inch OD
- Insert Package QTY: 5, 10, 50, 100
- Temperature Resistance: -29°C to 180°C
- Cable Clamp Grommet: Silicone or other types available, sizes vary
- Dimensions: Body length approx. 12.5 mm (0.49 in), width 12.7 mm (0.5 in), access hole 3.17 mm (0.13 in)
Buy the Omega Series SMPW-CC Connector: SMPWCCTIM
Order the SMPW-CC miniature connector online today to ensure secure, quick, and efficient wire terminations with integral strain relief and high-temperature nylon construction. Designed for wires from 40 AWG to 20 AWG, it provides dependable electrical connections in tight spaces. With captive screws, internal wire divider, and write-on window, it simplifies installation and maintenance. Available in bulk or single packs, this versatile connector suits industrial automation, control panels, and measurement systems, delivering performance and durability under demanding conditions.
Buy Omega SMPW-CC connector now and experience reliable strain relief and quick wire termination in your electrical projects.
