OMEGA CN3261JF Temperature Limit Controller
The CN3261 Series high-limit temperature controller offers reliable protection against excessive temperatures for industrial and commercial heating processes. It supports J, K thermocouples and RTD sensors, providing accurate temperature measurement from -18°C to 750°C depending on the sensor type. The unit features a form C latching relay with manual or remote reset, suitable for safeguarding expensive equipment. Mountable on DIN rails or panels, it ensures quick installation. The controller integrates a control output rated at 3.8 A resistance, with a compact Noryl enclosure for durability and safety in harsh environments.
OMEGA CN3261JF Temperature Limit Controller Specifications:
- Sensor Inputs: J Thermocouple: 0 to 750°C (0 to 1400°F), K Thermocouple: -18 to 1260°C (0 to 2300°F), RTD: -18 to 454°C (0 to 850°F), 2-wire input
- Control Output: SPDT relay rated at 3.8 A resistance and 1.5 A pilot duty at 120 Vac, with 100,000 cycles
- Control Mode: Latching with manual reset or power-off reset
- Set Point Adjustment: Local knob
- Sensor Break Protection: Contacts open if thermocouple or RTD breaks
- Ambient Operating Temperature: 0 to 60°C (32 to 140°F)
- Power Supply: 120 Vac or optional 24 Vac +15%, 50/60 Hz, 3 VA max
- Enclosure Material: Noryl, black
- Mounting Options: DIN rail and surface mounting with screw holes (2.5" W, 3.0" H)
- Dimensions: 76 mm H x 84 mm W x 64 mm D

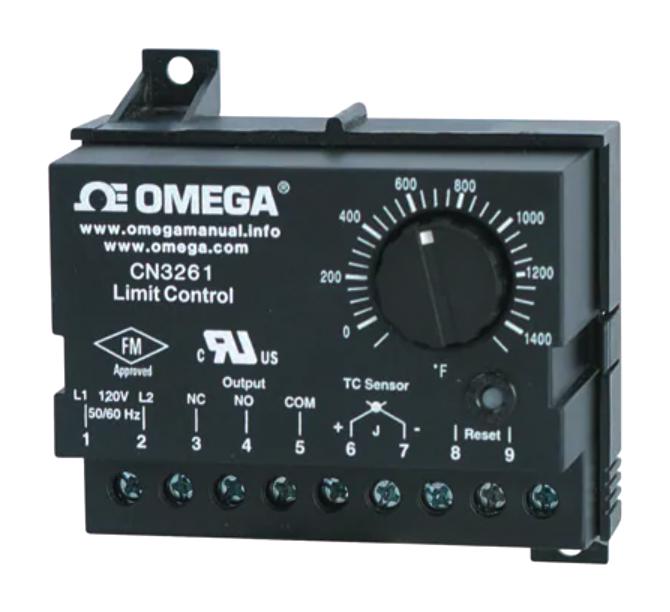

Buy the Omega Series CN3261 High-Temperature Limit Controller: CN3261-JF
Purchase the Omega Series CN3261 temperature limit controller online now for fast, dependable temperature protection in industrial and commercial heating applications. Designed with versatile sensor inputs including J, K thermocouples, and RTDs, it features a latching relay with manual or remote reset functions for safety. Easy to install on DIN rails or panels, its durable Noryl enclosure ensures long-term reliability. Protect equipment with precise temperature sensing and adjustable setpoints. Shop online today for quick delivery and exceptional performance.
Order your Omega Series CN3261 high-limit temperature controller today and ensure reliable protection against overheating with precise sensor inputs and easy DIN rail mounting.
