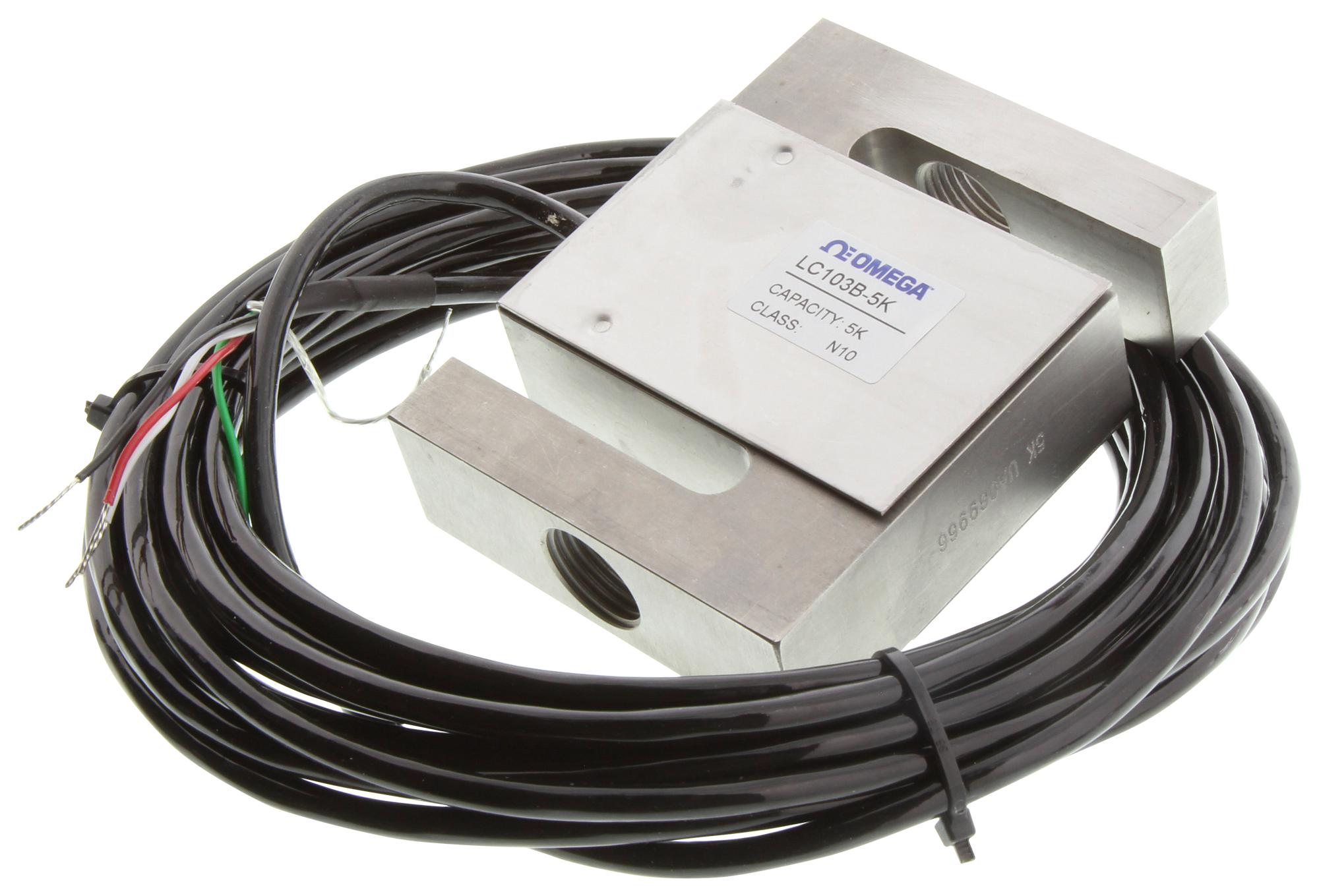

OMEGA LC103B5K Stainless Steel Load Cell
Omega's LC103B series stainless steel S-beam load cells are designed for both tension and compression applications. These compact, high-accuracy sensors feature a robust stainless steel construction with sealing to ensure IP67 ingress protection, making them suitable for harsh environments. Capable of handling capacities from 25 to 20,000 pounds, they provide excellent linearity, stability, and temperature performance for industrial weighing, hopper, tank, and crane scale use. Certified to OIML R60 C3, these load cells are ideal for legal metrology and demanding force measurement tasks.
OMEGA LC103B5K Stainless Steel Load Cell Specifications:
- Capacity: 25 to 20,000 lbs (11 to 9072 kg)
- Material: Stainless steel
- Ingress protection: IP67
- Accuracy: Class C3 (for >25 lb)
- Output sensitivity: 3.0 ± 0.08 mV/V
- Maximum overload: 150% FS, Ultimate overload: 300% FS
- Zero balance: ±1.0% FS
- Excitation voltage: 5 to 12 V DC (max 18 V DC)
- Input resistance: 430 ± 60 Ω
- Output resistance: 351 ± 2 Ω
- Insulation resistance: ≥5000 MΩ at 50 V DC
- Operating temperature: -35°C to 65°C
- Storage temperature: -40°C to 70°C
- Recommended torque for fixing: 1/4" UNF: 18 lbf·ft; 1/2" UNF: 55 lbf·ft; 3/4" UNF: 330 lbf·ft; 1" UNF: 550 lbf·ft; 1 1/8" UNF: 1070 lbf·ft
Buy the Omega LC103B5K U+2013 Reliable Load Cell for Industrial Applications
Secure your industrial weighing and force measurement needs with the Omega LC103B series stainless steel load cells. Engineered for durability, these compact sensors provide high accuracy and stability for tension and compression applications. Featuring IP67 protection and a range of capacities from 25 to 20,000 pounds, they are ideal for crane scales, hopper weighing, tank measurement, and legal metrology compliance. Easy to install, with full calibration certificates, these load cells ensure reliable operation in harsh environments. Purchase online today for dependable force measurement solutions.
Order your Omega Series LC103B-5K stainless steel load cell today and ensure precise tension or compression measurement in demanding environments.
Frequently Asked Questions
Where can I buy OMEGA LC103B5K?
You can click on the BUY or RFQ button to purchase LC103B5K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC103B5K?
You can download the LC103B5K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC103B5K?
OMEGA
