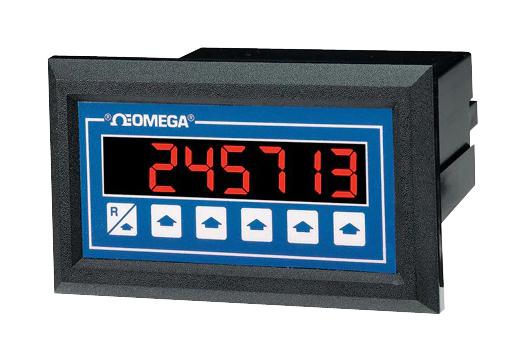

OMEGA DPF76A industrial totalizer controller
The DPF76 is a scalable totalizer and batch controller featuring a 6-digit display and two relays for 2-stage batch control. Designed for precise frequency input measurement, it offers easy front-panel programming, scaling options for 'A - B' or 'A + B', and accepts two inputs. Its rugged NEMA 4x (IP66) front panel accommodates harsh environments. Power adaptable for 110 Vac or 220 Vac, it includes relays rated 5 A at 240 Vac, with optional analog output. Suitable for industrial automation requiring accurate totalization and batching functions, it ensures reliable operation in demanding settings.
OMEGA DPF76A industrial totalizer controller Specifications:
- Input Power: 110 Vac ±15% or 220 Vac ±15%, 6.5 VA
- Output Power: +12 Vdc @ 50 mA, unregulated, ±50%
- Rate Accuracy: ±0.1% of reading + 1 LSD
- K Factor: Up to 5 digits
- Operating Temperature: 0 to 54°C (32 to 129°F)
- Storage Temperature: -40 to 93°C (-40 to 199°F)
- Memory: EEPROM stores data for 10 years without power
- Pulse Input: 0-1 Vdc low; 4-30 Vdc high; 10 kΩ impedance, up to 10 kHz; min 0.05 Hz for rate
- -LL Option: 30 mV min to 50 V max p-p input, 10 kΩ impedance, 5 kHz max
- Relays: 5 A @ 240 Vac or 28 Vdc, SPST, NO or NC, latch or auto-recycle (0.1-99.9s)
- Panel Cutout: 4.5 H x 9.2 W cm, DIN standard, 10.3 cm depth
- Dimensions: 4.5 H x 9.2 W x 10.3 D cm
- Certifications: CE
- Enclosure: NEMA 4x (IP66) front panel
Buy the Buy Omega DPF76 Totalizer Batch Controller Part Number DPF76A Online
Enhance your manufacturing process with the Omega DPF76 totalizer and batch controller. Featuring a 6-digit display, two relays for 2-stage batch control, and NEMA 4x (IP66) front panel, it provides precise measurement and reliable operation. Accepting two inputs with scalable functions for 'A - B' or 'A + B,' it is suitable for harsh environments. Easy front-panel programming, adjustable relays, and optional analog output make this device an essential part of industrial automation systems.
Buy Omega DPF76 now and experience unmatched reliability and performance in industrial totalization and batching applications.
