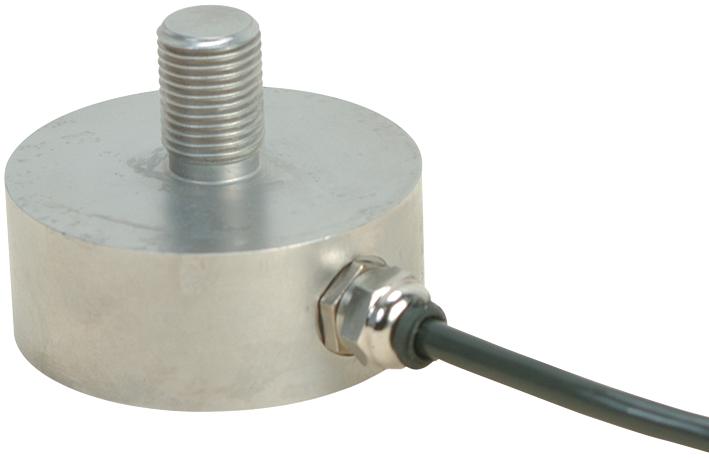

OMEGA LC2041K force measurement load cell
Omega's LC204/LCM214 Series load cells are high-accuracy, surface-mounted, stainless steel sensors designed for industrial weighing and force measurement. Calibrated with 5-point tension, they feature high linearity (+0.15%), a compact 51 mm diameter, and IP65 protection. Suitable for difficult locations and test stands, these load cells operate within a temperature range from -46°C to 107°C, with safe overload capacity at 150%, ensuring durability and precise readings in demanding environments. They include NIST-traceable calibration and compatible connectors for easy integration.
OMEGA LC2041K force measurement load cell Specifications:
- Diameter: 51 mm (2 inches)
- Construction: Stainless steel
- Excitation: 10 Vdc, 15 Vdc maximum
- Output: 2 mV/V +1.0%
- Linearity: +0.15% FSO
- Zero Balance: +2% FSO
- Operating Temp Range: -46 to 107°C (-50 to 225°F)
- Compensated Temp Range: 16 to 71°C (60 to 160°F)
- Protection Class: IP65
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Input Resistance: 350 ohms minimum
- Output Resistance: 350 ohms ±10 ohms
- Cable Length: 3 meters (10 feet), shielded, 4-conductor
- Mounting: Surface-mounted with threaded studs (M12x1.75, M5x0.8, 10-32 UNF, 1/4-20 UNF)
- Dimensions include mounting holes and threaded shaft for secure installation
- Certifications: NIST-traceable calibration included, IP65 interface protection
Buy the Omega LC204/LCM214 – Reliable Force and Weighing Sensors for Industrial Applications
Enhance your industrial testing and weighing setups with Omega's LC204/LCM214 series load cells. Designed for tough environments, these stainless steel sensors provide precise readings with high linearity. Easy to install on flat surfaces, they include NIST calibration, ensuring accuracy for force measurement applications. With IP65 protection and temperature tolerance from -46°C to 107°C, they are ideal for demanding industrial and commercial use. Purchase online today for quick delivery and reliable performance that meets your testing needs.
Buy Omega LC204/LCM214 load cells now and experience unmatched reliability and performance in force measurement and industrial weighing tasks.
Frequently Asked Questions
Where can I buy OMEGA LC2041K?
You can click on the BUY or RFQ button to purchase LC2041K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC2041K?
You can download the LC2041K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC2041K?
OMEGA
