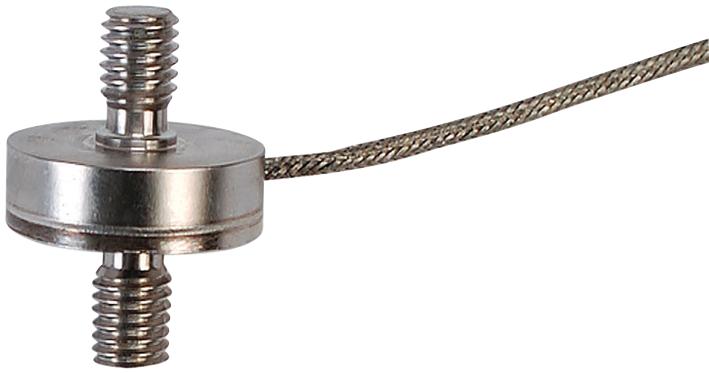

OMEGA LC20175 Miniature Load Cell
Omega's L€201/LEM201 Series subminiature load cells are designed for industrial automation and robotics. With a 19 mm (0.75") diameter and all stainless steel construction, they fit into small systems while providing high accuracy and long-term reliability. Calibrated in tension with 5-point calibration, these load cells deliver precise measurements for tension and compression loads from 0-25 lb to 0-300 lb or 0-100 N to 0-500 N. They feature IP54 protection, temperature compensation, and a compact design suitable for demanding environments.
OMEGA LC20175 Miniature Load Cell Specifications:
- Diameter: 19 mm (0.75")
- Material: Stainless steel
- Excitation: 10 Vdc, 15 Vdc max
- Output: 2 mV/V nominal
- Accuracy: ±1.0% FSO
- Calibration: 5-point in tension
- Zero Balance: +2% FSO
- Operating Temp Range: -54 to 121°C (-65 to 250°F)
- Compensated Temp Range: 16 to 71°C (60 to 160°F)
- Protection Class: IP54
- Zero Thermal Effect: 0.018% FSO/°C
- Span Thermal Effect: 0.018% FSO/°C
- Safe Overload: 150%
- Ultimate Overload: 300%
- Input Resistance: 360Ω min
- Output Resistance: 350Ω ± 10Ω
- Electrical Cable: 1.5 m (5') 4-conductor shielded
- Dimensions: 14.28 mm UNF, typical; 4.5 m shielded cable
- Certifications: NIST traceable calibration
Buy the Omega Series L€201 Load Cell: LC20175
Purchase the Omega Series L€201 miniature load cell online today to benefit from high accuracy, robust stainless steel construction, and NIST traceable calibration. Ideal for robotics and industrial automation, this small, reliable sensor delivers precise tension and compression measurements in demanding environments. Its compact design, IP54 protection, and 5-point calibration ensure long-term performance. Order now to upgrade your measurement system with a proven, dependable load cell that meets strict quality standards and enhances your project’s accuracy and efficiency.
Order your Omega Series L€201 load cell today and ensure precision tension and compression measurement in your industrial and robotic applications.
Frequently Asked Questions
Where can I buy OMEGA LC20175?
You can click on the BUY or RFQ button to purchase LC20175 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC20175?
You can download the LC20175 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC20175?
OMEGA
