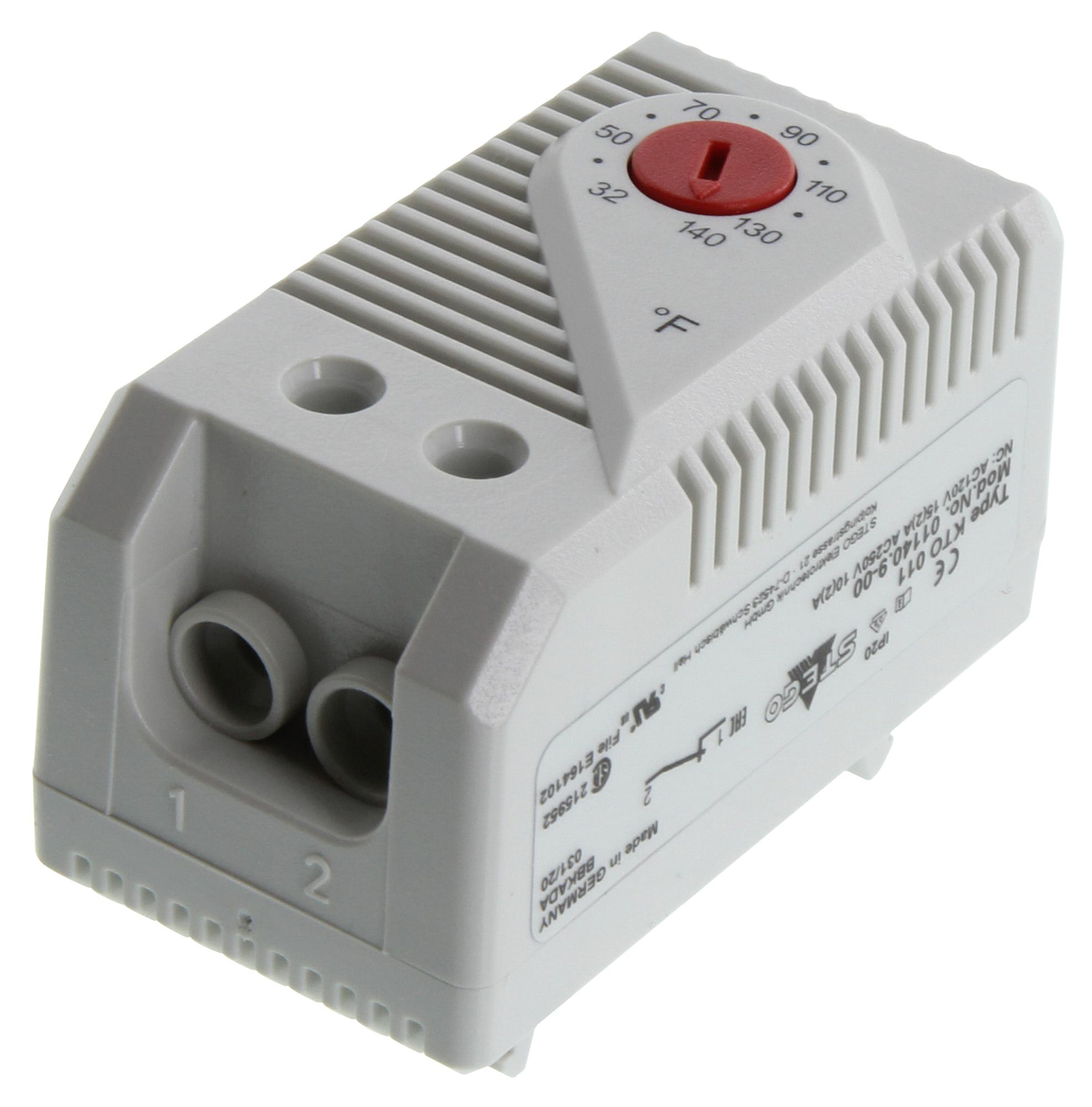

OMEGA KT011409 Small Thermostat
The small thermostat from the KT011 Series features a compact design with a wide adjustment range and color-coded temperature dials, available in Celsius or Fahrenheit scales. It is DIN rail mountable and incorporates a thermostatic bi-metal sensor element, offering a service life of 100,000 cycles. Suitable for various control applications, this thermostat supports resistive loads up to 15 A at 120 Vac and 10 A at 250 Vac, with a maximum switching capacity of 30W DC. The durable plastic housing complies with UL94V-0 standards and ensures IP20 protection for reliable operation in controlled environments.
OMEGA KT011409 Small Thermostat Specifications:
- Sensor Element: Thermostatic bi-metal
- Maximum Tolerance: +7°F (4K)
- Switching Difference (Hysteresis): 12.6°F +5.4°F (7°C +3K)
- Service Life: 100,000 cycles
- Switching Capacity (Max Load): 15 A resistive/2 A inductive @ 120 Vac, 10 A resistive/2 A inductive @ 250 Vac, DC 30W
- Minimum Load: 20 mA at all voltages
- Connections: 2-pole terminal for AWG 14 max (2.5 mm²)
- Mounting: Clip for 35 mm DIN rail (EN 50022)
- Dimensions: 60 H x 33 W x 43 mm D (2.4 x 1.3 x 1.7 inches)
- Housing: Plastic, UL94V-0
- Weight: 40 g (1.4 oz)
- Protection Type: NEMA 2 (IP20)
- Operating Temperature Range: 45 to 70°C, optional models 0 to 60°C
- Storage Temperature: -45 to 70°C (-49 to 158°F)
Buy the SMALL THERMOSTAT Series KT011: Thermostat 43
Purchase the small thermostat from the KT011 Series online today and enjoy precise temperature regulation for your control systems. This durable device features bi-metal sensors, wide adjustment ranges, and reliable switching capacities. With DIN rail mounting and UL94V-0 housing, it offers easy integration into your automation setup. Perfect for challenging environments, it ensures long service life and dependable performance. Order now to enhance your automation, HVAC, or industrial control systems with this versatile, high-quality thermostat.
Buy SMAL Thermostat Series KT011 now and experience unmatched reliability and performance in temperature control applications.
