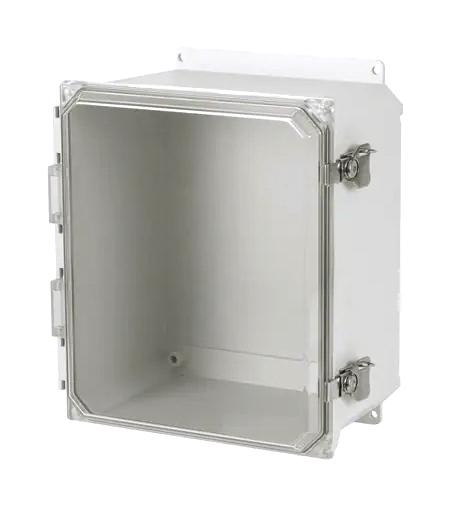

OMEGA OMAMU1648LCCF Fiberglass Enclosure
The OM-AMU series non-metallic fiberglass enclosures are designed for indoor and outdoor use, providing excellent protection for electrical controls and components. Made from fiberglass reinforced polyester with UV stabilization and UL 94 flammability rating, these NEMA 4X (IP66) rated boxes feature molded-in hinges, stainless steel hardware, and various cover options, including clear polycarbonate. They are suitable for higher temperatures and corrosive environments, with factory-installed mounting flanges for easy installation and options for sub-panels and front panels, ensuring versatile and durable electrical enclosure solutions.
OMEGA OMAMU1648LCCF Fiberglass Enclosure Specifications:
- Material: Fiberglass reinforced polyester
- Service Temperature: -35 to 130°C (-31 to 266°F)
- Standards: UL Types 1, 2, 3, 4, 4X, 12, 13; CSA Types 1, 2, 3, 3R, 4, 4X, 12, 13; NEMA Types 1, 2, 3, 3R, 4, 4X, 12, 13; IEC Type IP66
- Flammability Rating: UL 94
- Hinges: Molded-in with stainless steel hinge pins
- Seals: Tongue and groove, closed cell neoprene
- Hardware: 304 stainless steel
- Dimensions vary by model, with heights from 6 to 20 inches, widths from 6 to 16 inches, depths from 4 to 10 inches
- Cover Options: Lift-off with four screws, molded-in hinges, clear polycarbonate views
- Temperature Range: -35°C to 130°C
- Enclosure Grade: Suitable for corrosive and higher temperature environments, rated NEMA 4X and IP66
Buy the Fiberglass Series OM-AMU: OMAMU1648LCCF
Procure the Fiberglass Series OM-AMU1648LCCF enclosure online today to ensure your electrical project has a durable, corrosion-resistant, and versatile protective solution. Designed for outdoor and harsh environments, this enclosure features UV stabilization, stainless hardware, and a clear polycarbonate cover. Its molded-in hinges and factory-installed mounting flanges facilitate easy installation. Available with various cover options including viewing windows, it offers excellent protection for controls and components, meeting NEMA 4X and IP66 standards, ensuring your electrical system remains safe and compliant in demanding conditions.
Order your Fiberglass Series OM-AMU enclosures today and secure reliable protection for your electrical components in harsh environments.
Frequently Asked Questions
Where can I buy OMEGA OMAMU1648LCCF?
You can click on the BUY or RFQ button to purchase OMAMU1648LCCF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OMAMU1648LCCF?
You can download the OMAMU1648LCCF datasheet or visit the OMEGA website for support.
Who is the manufacturer of OMAMU1648LCCF?
OMEGA
