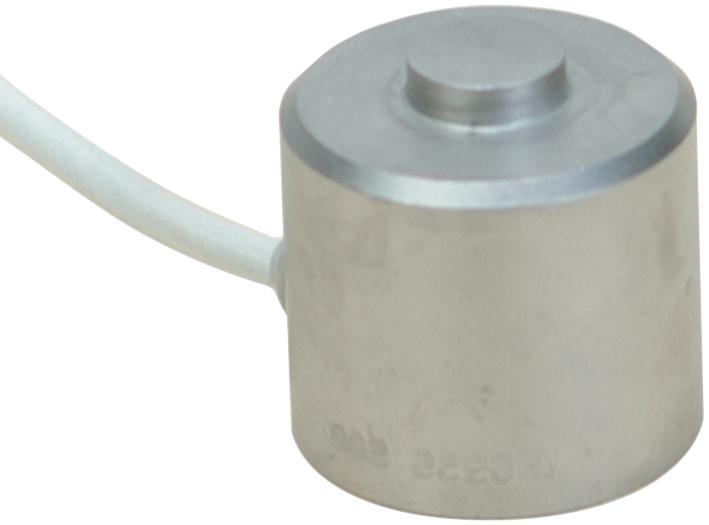

OMEGA LC304500 compression load cell
The LC304-500 series stainless steel compression load cells provide highly reliable measurement for industrial applications, supporting capacities from 100 to 50,000 units. Featuring a miniature 25 mm diameter design, these load cells are easy to mount in tight spaces or on flat surfaces. They include a 5-point NIST-traceable calibration, high overload protection at 150%, and IP65 protection class for rugged durability. The units operate with a 10 VDC excitation, offering a stable output of 2 mV/V, making them ideal for precise force measurement in diverse industrial environments.
OMEGA LC304500 compression load cell Specifications:
- Material: Stainless steel
- Diameter: 25 mm (1 inch)
- Capacity Range: 100 to 50,000 units (Ib, N, or kgf)
- Output: 2 mV/V nominal
- Excitation Voltage: 10 Vdc, maximum 15 Vdc
- Overload Protection: 150%
- Ultimate Overload: 300% capacity
- Bridge Resistance: 350 Ohms minimum
- Protection Class: IP65
- Electrical Length: 1.5 meters (5 feet) 4-conductor cable
- Temperature Range: -10 to 71°C (14 to 160°F)
- Zero Balance: 0.009% FSO/°C
- Deflection: 0.025 to 0.076 mm (0.001 to 0.003 inches)
- Calibration: 5-point NIST-traceable
- Wireless or wired options available for industrial measurement
- Built-in load button protection for safety and durability
Buy the Omega LC304-500 U+2013 Reliable Compression Load Cell for Industrial Applications
Order the Omega LC304-500 compression load cell online now to ensure precise and reliable force measurement in your industrial settings. Its compact stainless steel design, IP65 protection class, and high overload capacity make it suitable for harsh environments. With 5-point calibration and a stable 2 mV/V output, this load cell provides accuracy and durability for demanding industrial applications. Easy to install with a 1.5-meter cable, it guarantees consistent performance, whether used in force testing, automation, or material testing setups. Buy today for dependable results and peace of mind.
Get Omega LC304-500 today—built for precision and long-lasting durability in force measurement applications.
Frequently Asked Questions
Where can I buy OMEGA LC304500?
You can click on the BUY or RFQ button to purchase LC304500 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC304500?
You can download the LC304500 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC304500?
OMEGA
