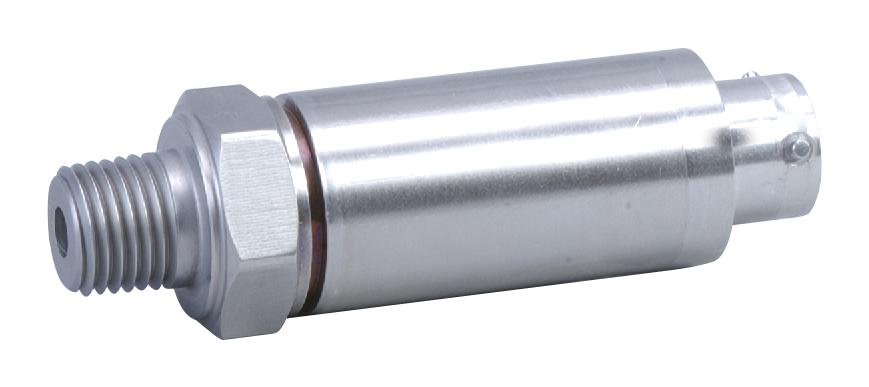

OMEGA PX32910KGI pressure transducer
The PX329 series high-performance pressure transducer features advanced silicon sensor technology for precise and reliable measurements. Constructed entirely from stainless steel, it offers an accuracy of ±0.25% FS encompassing linearity, hysteresis, and repeatability. With a pressure range from 0 to 690 bar (0 to 10,000 psi), it provides a 4 to 20 mA output signal. Designed for durability, it boasts an IP65 rating, rugged solid-state construction, and long-term stability of approximately ±0.25% over one year. Operating temperatures span -40°C to 85°C (-40°F to 185°F). The pressure port is a quarter-inch 18 MNPT with twist-lock connection, suitable for industrial environments and applications requiring high accuracy and stability.
OMEGA PX32910KGI pressure transducer Specifications:
- Pressure Range: 0 to 10,000 psi (0 to 690 bar)
- Accuracy: ±0.25% FS including linearity, hysteresis, and repeatability
- Material: Stainless Steel construction
- Output Signal: 4 to 20 mA
- Protection Rating: IP65
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Pressure Port: 0.25 inch 18 MNPT with twist-lock connection
- Stability: Approximately ±0.25% FS over 1 year
- Sensor Technology: High-performance silicon sensor
- Calibration: 5-point NIST-traceable calibration
- Durability: Rugged solid-state design with low drift
- Application Suitability: Industrial pressure measurement environments
Buy the Omega PX32910KGI – Reliable Pressure Transducer for Industrial Applications
Order the Omega PX329 pressure transducer online today and ensure precise, reliable measurements in your industrial processes. Featuring advanced silicon technology, stainless steel construction, and a rugged design, it offers high stability and low drift, making it suitable for a range of demanding applications. With a 4 to 20 mA output, IP65 protection, and calibration traceable to NIST standards, this transducer is perfect for industries requiring accuracy and durability. Purchase now to enhance your measurement systems and ensure operational excellence over the long term.
Buy Omega PX32910KGI now and experience unmatched reliability, high accuracy, and durable performance in demanding industrial pressure measurements.
