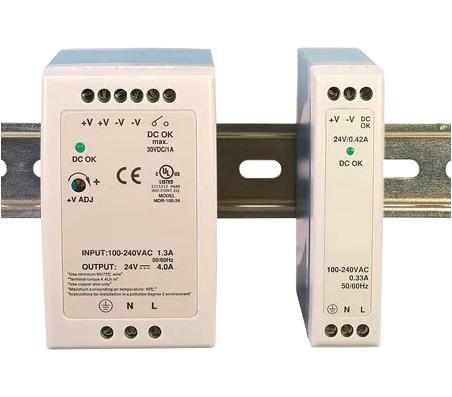

OMEGA SLPSS6024 industrial power supply
The SL-PS series offers reliable, compact DC power supplies designed for industrial control systems. Suitable for PLCs, sensors, and switches, these units feature protections against short circuits, overloads, and over-voltage. They are UL/CUL listed, CE marked, and NEC class 2 compliant, ensuring safety and durability. The power supplies support universal AC inputs, include a power-on LED indicator, and install easily on standard DIN rails. Built-in DC OK signals via active indicator or relay contact enhance system monitoring, making these economical options ideal for space-constrained control cabinets.
OMEGA SLPSS6024 industrial power supply Specifications:
- Working Temperature: -20 to 70°C
- Working Humidity: 20 to 90% RH non-condensing
- Dimensions: 90 H x 100 mm D
- Input Voltage: 85 to 264 Vac, 47 to 63 Hz, 120 to 370 Vdc
- Output Voltage: 24 Vdc
- Ripple and Noise: 150 mVp-p
- Voltage Tolerance: +1%
- Line and Load Regulation: +1%
- Inrush Current: 35 A/115 Vac, 70 A/230 Vac (SL-PS-S1024); 20 A/115 Vac, 40 A/230 Vac (SL-PS-S2024); 30 A/115 Vac, 60 A/230 Vac (others)
- Efficiency: 84 to 88%
- Protection: Short Circuit, Overload, Overvoltage
- Certifications: UL508, EN60950-1, NEC Class 2, CE Marked
- Withstand Voltage: 3k Vac I/P-0/P
- Insulation Resistance: 100 MΩ at 500 Vdc
- EMI Compliance: EN55011, EN55022, EN61204-3 (Class B)
- Harmonic Current: EN61000-3-2, -3
Buy the SEAR SL-PS Series Reliable Power Supplies for Industrial Applications
Purchase the SEAR SL-PS series high-efficiency power supplies online today. Designed for industrial control systems, these units deliver stable 24V DC output, ensuring reliable operation for PLCs, sensors, and switches. Compact and easy to install on DIN rails, they feature protection against short circuits, overloads, and over-voltage. With full burn-in testing, UL/CUL listing, CE marking, and NEC compliance, these power supplies offer durability, safety, and excellent performance in space-constrained environments. Order now for quick delivery and system peace of mind.
Get SEAR SL-PS series power supplies today—built for space-saving installation, system reliability, and long-lasting durability.
