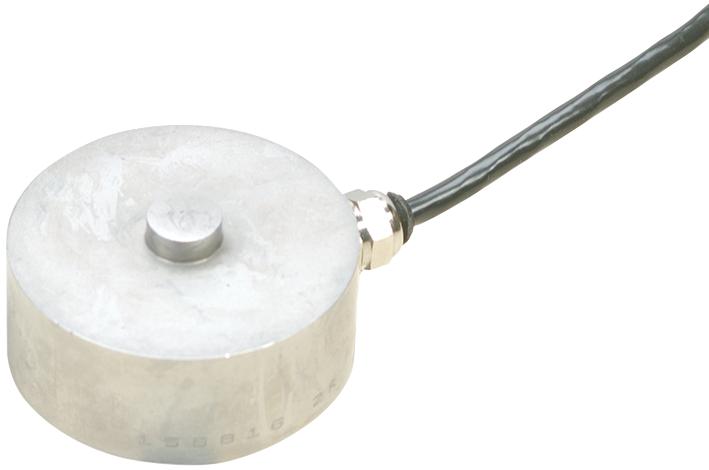

OMEGA LC30550 Miniature Compression Load Cell
The LC30550 miniature compression load cell offers precise force measurement with a capacity of 50,000 pounds. Constructed from stainless steel, it features a low profile, built-in load button for easy installation, and a 5-point calibration system. Suitable for industrial weighing, test benches, and prototype testing, it operates over a temperature range of -46 to 107°C and is IP65 rated for protection. Excitation voltage is 10 VDC, with a 2 mV/V output and a linearity of +0.15% FSO, ensuring accurate and reliable measurements in demanding environments.
OMEGA LC30550 Miniature Compression Load Cell Specifications:
- Construction: Stainless steel
- Capacity: 50,000 lb (22,680 kg)
- Output: 2 mV/V (+0.25%)
- Excitation: 10 Vdc (max 15 Vdc)
- Linearity: +0.15% FSO
- Hysteresis: 0.1% FSO
- Repeatability: +0.05% FSO
- Zero Balance: +2% FSO
- Deflection: 0.025 to 0.075 mm
- Operating Temperature Range: -46 to 107°C
- Protection Class: IP65
- Overload Limits: Safe overload 150%, ultimate overload 300%
- Electrical: 3 m 4-conductor shielded PVC cable with mating connector
- Mounting: Bottom view shows mounting holes, 10-32 UNF x 0.40 inch depth
- Dimensions: Diameter 51 mm (2.0 inches), height varies
- Thermal Effects: Zero 0.0025% FSO/°F, Span 0.005% FSO/°F
Buy the Omega LC30550 – Reliable Compression Load Cell for Industrial Applications
Order the Omega LC30550 miniature stainless steel compression load cell online today for precise force measurement up to 50,000 pounds. Perfect for industrial weighing, test benches, and prototype testing, this load cell features a low profile, stainless steel construction, built-in load button for easy installation, and a robust IP65-rated enclosure. With a 2 mV/V output, 5-point NIST-traceable calibration, and operation over -46°C to 107°C, ensure reliable and accurate measurements in demanding environments. Buy now for durable and precise force sensing.
Get Omega LC30550 today—built for precision, durability, and industrial weighing accuracy.
