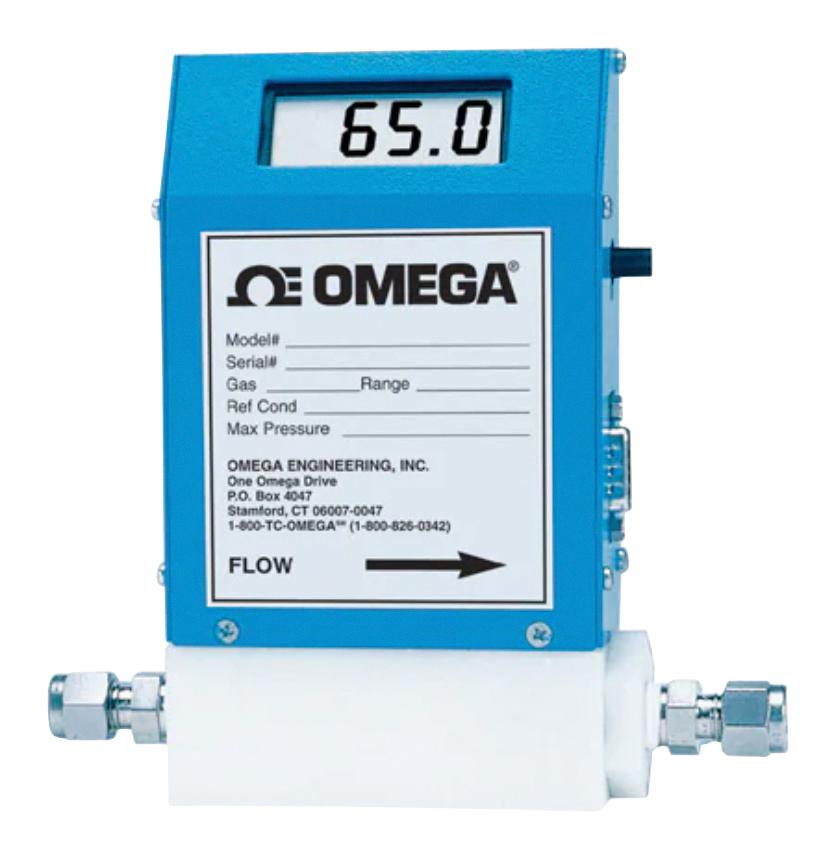

OMEGA FMAA2304 Mass Flow Controller
The FMA-A2000 Series electronic mass flow meters and controllers use advanced thermal technology to measure gas flow with high accuracy and repeatability. Designed for clean gases, these compact devices handle flow rates up to 100 SLM and offer linear analog outputs of 0-5 V or 4-20 mA. They feature a simple setup, no temperature or pressure corrections, and are suitable for non-corrosive gases. Options include models with LCD displays and stainless steel bodies for enhanced durability in demanding environments.
OMEGA FMAA2304 Mass Flow Controller Specifications:
- Accuracy: +1% of full scale including linearity
- Repeatability: +0.15% full scale
- Turndown Ratio: 100:1
- Response Time: 5 seconds
- Gas Ambient Temperature: 0 to 50°C (32 to 122°F)
- Temperature Coefficient: 0.05% full scale per 1°C
- Pressure Coefficient: 0.01% full scale per psi
- Maximum Gas Pressure: 250 psig (Polyacetal), 500 psig (316 SS)
- Leak Integrity: 1 x10^-8 cc/min of He
- Wetted Parts: Polyacetal, FKM O-rings; optional 316 SS, FKM O-rings
- Connections: 4 FNPT standard or compression fitting for stainless steel
- Power Supply: 24 Vdc @ 150-300 mA, 115/220 Vac adapters
- Dimensions: See manufacturer drawing
- Weight: Approximately 1.25 kg (2.75 lb)
Buy the Buy Omega FMA-A2000 Series Part Number FMAA2304 Online
Purchase the Omega FMA-A2304 mass flow controller online and enjoy reliable, high-precision gas flow measurement suitable for various industrial applications. Featuring thermal technology, this compact device provides accurate readings up to 100 SLM, with simple setup and no need for pressure or temperature corrections. The controller’s linear 4-20 mA and 0-5 V outputs allow easy integration into control systems. Built with durable materials and options for stainless steel, it ensures longevity in demanding environments while offering excellent repeatability and response times. Place your order today for dependable performance.
Order your Omega FMA-A2304 mass flow controller today and ensure precise, reliable gas measurement for your industrial processes.
