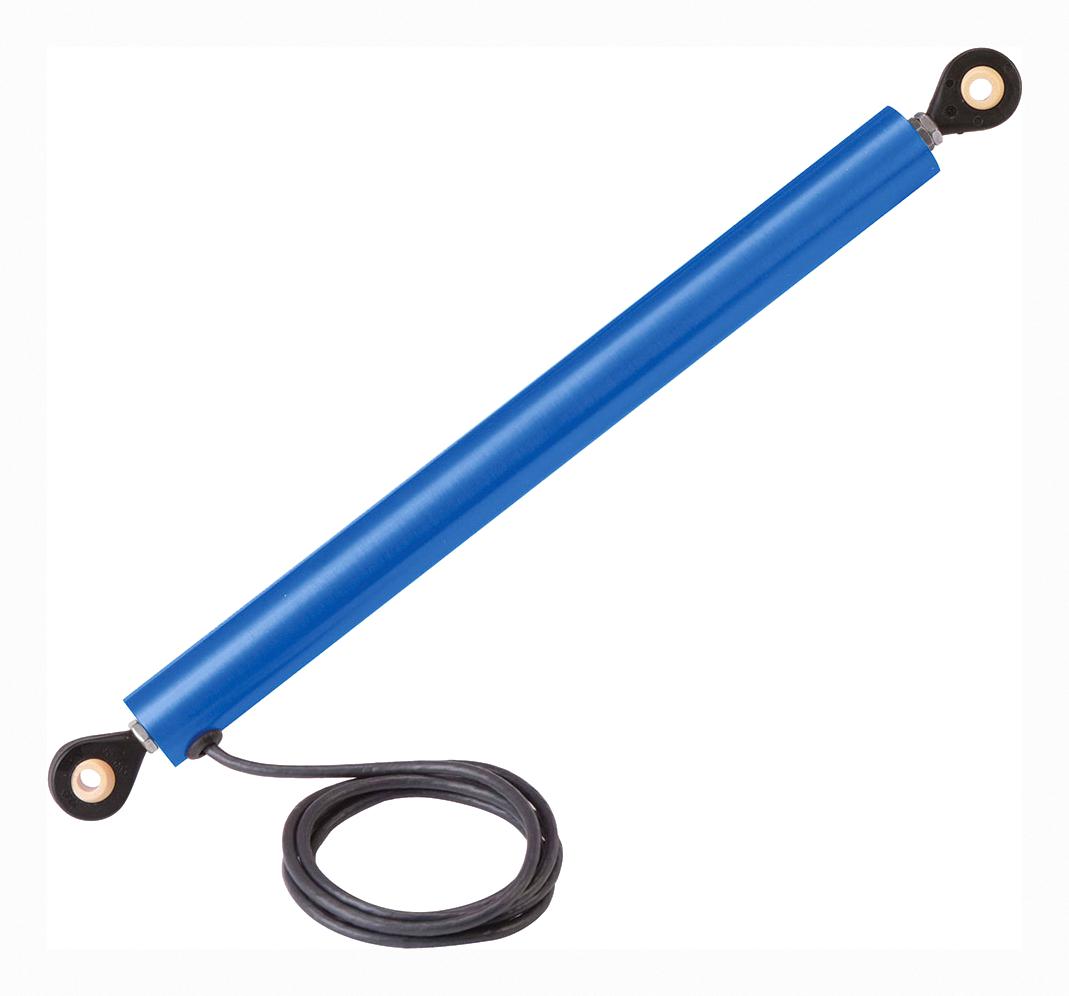

OMEGA LDI119200A020A Linear Position Sensor
The LDI-119 Series Linear Variable Inductive Transducers are contactless position sensors ideal for industrial automation, robotics, and testing applications. Featuring a compact, robust aluminum housing sealed to IP67, they offer high accuracy with a stroke-to-length ratio and reliable performance under harsh conditions. Operating with 0 to 10V or 4 to 20 mA outputs, these sensors range from 25 to 200 mm full scale. They include radial cable exit, swivel rod eye ends, and are field programmable, making them versatile for challenging environments.
OMEGA LDI119200A020A Linear Position Sensor Specifications:
- Measuring Range: 25 to 200 mm (1 to 8 inches) full scale
- Output Voltage: 0 to 10V with 12 to 30V input, 35 mA max
- Output Current: 4 to 20 mA (3-wire) with 18 to 30V input, 60 mA max
- Linearity Error: +0.15% of Full Scale Output (FSO) typical, +0.25% max
- Resolution: 0.025% of FS
- Update Rate: 300 Hz
- Operating Temperature: -20°C to 85°C
- Vibration Resistance: 5-20 Hz, 0.5” p-p; 20-2000 Hz, 4.2 g p-p
- Shock Resistance: 1000 g, 11 ms
- Housing Material: Anodized Aluminum
- Ingress Protection: IP67
- Humidity: Up to 95% RH non-condensing
- Cable Type: 4-conductor radial exit cable, various lengths available
- Housing Diameter: 19 mm
Buy the Buy Omega LDI-119 Series Position Sensor Part Number LDI119200A020A Online
Purchase the Omega LDI-119 Series 200 mm range linear position sensor online today. This contactless, rugged sensor is designed for industrial applications, offering high accuracy, durability, and easy installation with radial cable exit and swivel rod eye ends. Suitable for harsh environments, it provides versatile voltage and current outputs, field programmability, and IP67 sealing. Boost your automation and testing projects by ordering this compact, reliable sensor now for improved precision and performance.
Order your Omega LDI-119 Series 200 mm range position sensor today and enhance your industrial automation or testing setup with reliable, contactless technology.
