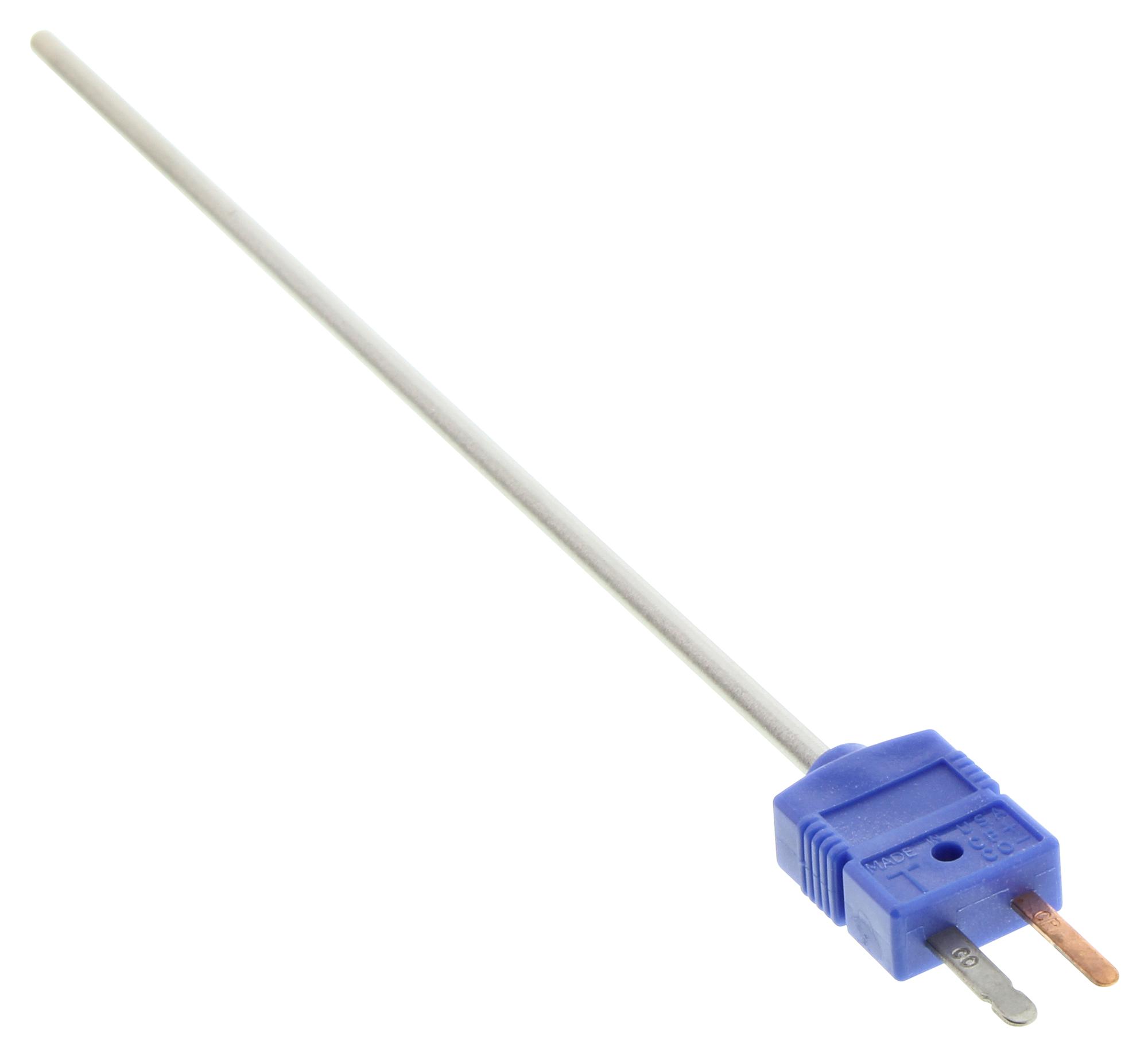

OMEGA TMQSS125G6 Thermocouple Probe
This is a subminiature quick disconnect thermocouple probe designed for precise temperature measurements. It features a rugged, glass-filled nylon connector body rated to 220°C (425°F). Available with various sheath materials including 304, 310, 316, or Inconel, and multiple lengths from 6 to 12 inches. The probe supports Type J, K, T, E, and other thermocouples with grounded, ungrounded, or exposed junction options. Custom lengths and configurations are available, with color-coded SMP mini connectors for easy identification. Suitable for high-temperature industrial applications requiring reliable, quick connection thermocouples.
OMEGA TMQSS125G6 Thermocouple Probe Specifications:
- Connector Body Material: Glass Filled Nylon
- Rated to 220°C (425°F)
- Sheath Materials: 304, 310, 316, 321 stainless steel, Inconel
- Sheath Diameter: from 0.010 to 0.125 inches
- Lengths Available: 6 and 12 inches (custom lengths available)
- Junction Types: Grounded, Ungrounded, or Exposed
- Connector Color: Color-coded SMP mini
- Temperature Range: Up to 220°C (425°F)
- Probe Diameter: 0.032 inches and larger supplied with molded connector, smaller probes with removable connector
- Compatible with miniature mating connector, cable clamp, and locking clip
- Probe configurations: Type J, K, T, E thermocouples
- Inconel sheath option available with no extra charge
- Order example: KMQSS-125G-6, thermocouple type K, stainless steel sheath, 0.125 inch diameter, 6 inches long, grounded junction
Buy the Omega Series Quick Disconnect Thermocouples: TMQSS125G6
Order the Omega TMQSS125G6 quick disconnect thermocouple now online to enjoy fast delivery of high-quality temperature sensors. Designed with a rugged glass-filled nylon connector body rated to 220°C, these probes are available with stainless steel or Inconel sheaths for maximum durability in industrial environments. They support various thermocouple types including J, K, T, and E, with options for grounded, ungrounded, or exposed junctions. Custom lengths and configurations are easy to specify, making these probes ideal for precise temperature monitoring in manufacturing, process control, and research applications.
Buy Omega TMQSS125G6 quick disconnect thermocouple now and ensure accurate, reliable high-temperature measurements with easy connect/disconnect features.
Frequently Asked Questions
Where can I buy OMEGA TMQSS125G6?
You can click on the BUY or RFQ button to purchase TMQSS125G6 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part TMQSS125G6?
You can download the TMQSS125G6 datasheet or visit the OMEGA website for support.
Who is the manufacturer of TMQSS125G6?
OMEGA
