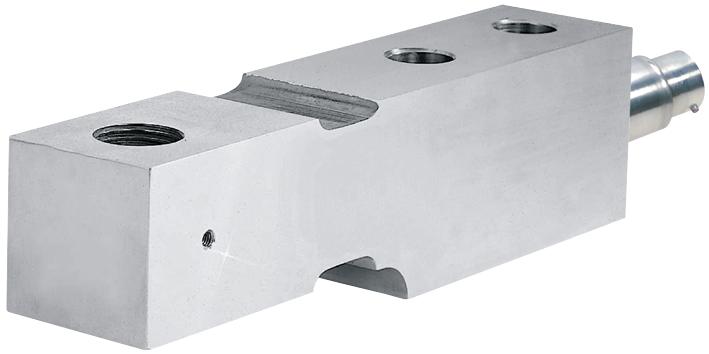

OMEGA LC511200 Stainless Steel Load Cell
High-accuracy stainless steel cantilever beams designed for harsh industrial environments. These load cells offer 0.25% interchangeability across multiple applications with 5-point calibration in compression. Constructed from 17-4 PH stainless steel, they feature a safe overload capacity of 150% and ultimate overload of 300%, ensuring durability and precision. The models, including LC501 and LC511 series, provide precise measurements with a linearly of +0.03% FSO and operate within a temperature range of -30 to 180°F. Ideal for industrial weighing and force measurement projects requiring reliability and high performance.
OMEGA LC511200 Stainless Steel Load Cell Specifications:
- Material: 17-4 PH stainless steel with high-alloy steel options
- Excitation Voltage: 10 Vdc, 15 Vdc maximum
- Output: 3 mV/V +0.25%
- Linearity: +0.03% FSO
- Zero Balance: +1% FSO
- Operating Temp Range: -30 to 180°F
- Compensated Temp Range: 60 to 160°F
- Thermal Effects: Zero and Span +0.001% FSO/°F
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Input Resistance: ≥360 Q
- Output Resistance: 350 Q ±10 Q
- FS Deflection: 0.02 inches (0.5 mm)
- Electrical Connection: Shielded 4-conductor cable or 6-pin connector
- Cable Length: 15 feet
- Capacities: Ranging from 25 lb to 30,000 lb
- Dimensions vary by capacity, with detailed thread sizes and mounting options
Buy the Stainless Steel Series LC511 Load Cell: LC511200
Purchase the stainless steel Series LC511200 load cell online now to benefit from high precision, durable construction, and reliable performance in demanding industrial environments. Designed with 17-4 PH stainless steel, it ensures durability and accuracy under harsh conditions. Featuring 0.25% interchangeability, 5-point calibration, and a safe overload capacity of 150%, this load cell is ideal for precise force measurement and industrial weighing applications. Easy to install, with shielded cable connections and capacity options up to 30,000 lb, order today to enhance your measurement systems effectively.
Order your stainless steel Series LC511200 load cell today and ensure accurate, reliable measurement in your industrial weighing projects.
