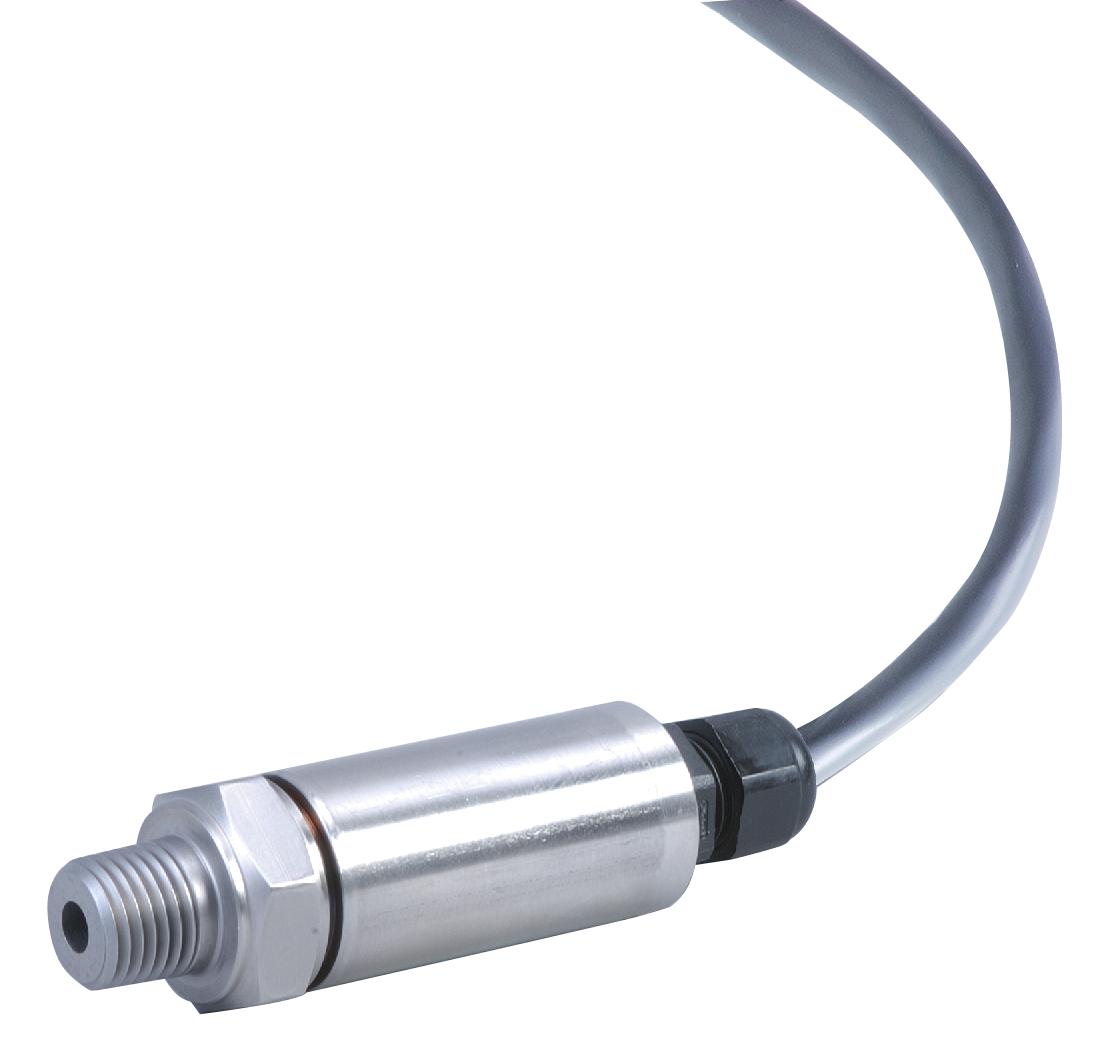

OMEGA PX309030AI Pressure Transducer
The PX309 Series is a rugged stainless steel pressure transducer suitable for high-accuracy measurements across various pressure ranges, including low-pressure applications. It features options for gage, absolute, and compound pressure measurements, with outputs in 0 to 5 Vdc, 4 to 20 mA, and 100 mV signals. Designed for industrial environments, it offers high stability, low drift, IP65 protection, and calibration traceable to NIST. Ideal for OEM and manufacturing sectors, it ensures reliable performance under harsh conditions with extensive customization options.
OMEGA PX309030AI Pressure Transducer Specifications:
- Ranges: -15 to 50 psig, 0 to 1000 psia, 100 to 10,000 psig
- Output signals: 0 to 5 Vdc, 4 to 20 mA, 100 mV
- Accuracy: ±0.25% static (linearity, hysteresis, repeatability)
- Material: All stainless steel construction
- Protection Class: IP65
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Pressure Port: 4-18 MNPT
- Calibration: NIST traceable, 5-point
- Pressure Overload: Up to 3 times rated for high-pressure ranges
- Response Time: <1 millisecond
- Vibration: +20 g, Shock: 50 g, 11 ms half-sine
- Resistance: Minimum 1 MΩ between body and wires
- Weight: 154 g (PX309), 100 g (PX319/329/359)
Buy the Omega PX309 – Reliable Pressure Sensor for Industrial Applications
Discover the Omega PX309 stainless steel pressure transducer, designed for high stability and low drift in demanding environments. It offers multiple output options including 0 to 5 Vdc, 4 to 20 mA, and 100 mV, making it versatile for various industrial applications. Its all stainless steel construction ensures durability and IP65 protection against harsh conditions. With NIST traceable calibration, it guarantees measurement accuracy and long-term stability. Perfect for OEMs, manufacturers, and end users seeking reliable pressure sensing solutions, order online today for quick delivery and comprehensive support.
Buy Omega PX309 now and experience unmatched reliability and performance in industrial pressure measurement.
Frequently Asked Questions
Where can I buy OMEGA PX309030AI?
You can click on the BUY or RFQ button to purchase PX309030AI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX309030AI?
You can download the PX309030AI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX309030AI?
OMEGA
