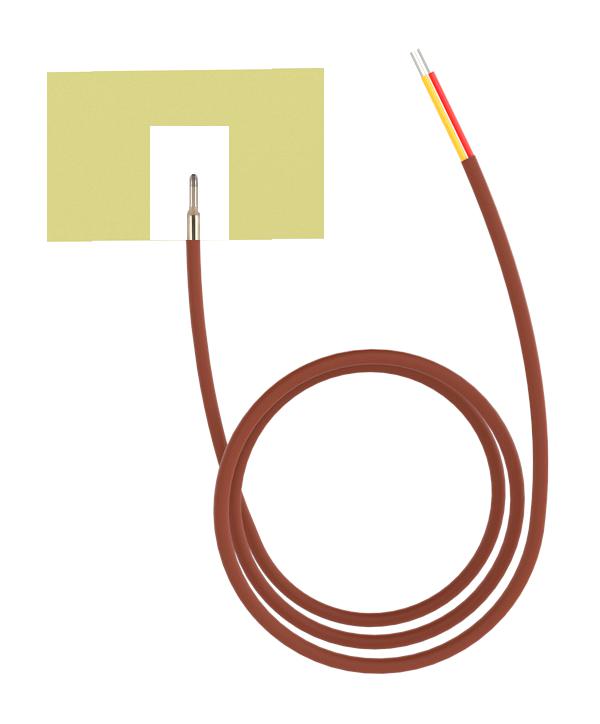

OMEGA CO2E Cement-On Thermocouple
OMEGA’s CO Series Cement-On thermocouples are ideal for fast surface temperature measurement applications. Constructed from ANSI grade thermocouple materials, these thermocouples offer accurate temperature indication when used with standard instrumentation. Available in various styles and calibrations (K, E, T), they are suitable for measuring the temperature of flat and curved metal, plastic, and ceramic surfaces where rapid response is crucial. Style 3 provides an economical option for applications where extremely fast response is not required.
OMEGA CO2E Cement-On Thermocouple Specifications:
- Thermocouple Type: CHROMEGA®-Constantan
- Length mm (inches): 150 mm (6")
- Maximum Continuous Temperature °C (°F): 425(800)
- Maximum 600 hr Temperature °C (°F): 425(800)
- Maximum 10 hr Temperature °C (°F): 540(1000)
- Response Time Style 1 & 1-B: 150 to 200 milliseconds
- Response Time Style 2: 2 to 5 milliseconds
- Response Time Style 3: 300 milliseconds
- Response Time Definition: Time required to reach 63.2% of an instantaneous temperature change
