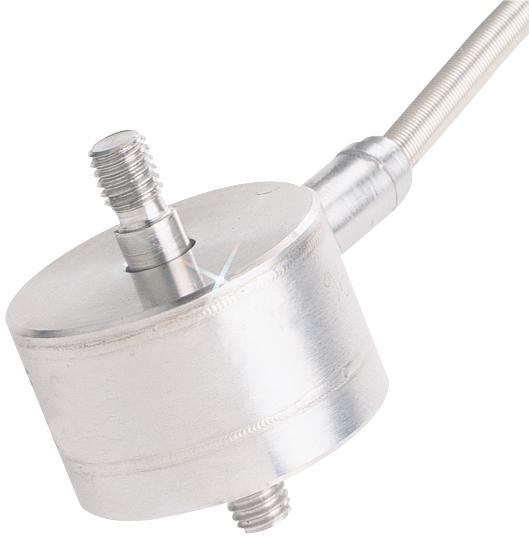

OMEGA LCFD1K Subminiature Load Cell
The LCFD-1K is a high-accuracy subminiature load cell designed for precision tension and compression measurements in industrial applications. Made from stainless steel, it features a compact design with male thread studs for load attachment. The load cell offers excellent long-term stability and minimal off-axis effects, suitable for small load ranges up to 1000 pounds or 5000 newtons. It operates within a temperature range of -54°C to 121°C, with stabilized output and reliable construction for demanding environments, including IP65 protection and internal temperature compensation.
OMEGA LCFD1K Subminiature Load Cell Specifications:
- Excitation: 10 Ib/50 N: 5 Vde, 225 Ib/100 N: 10 Vde
- Output: 2.2 Ib/10 N: 1.5 mV/V (nom), 25 Ib/20 N: 2 mV/V (nom)
- Accuracy (Linearity and Hysteresis): +0.15% FSO at 100 Ib/500 N
- Linearity and Hysteresis: within +0.15% FSO
- Zero Balance: +2% FSO
- Operating Temperature Range: -54°C to 121°C (-65°F to 250°F)
- Compensated Temperature Range: 16°C to 71°C (60°F to 160°F)
- Thermal Effects: Span +0.009% FSO/°C, Zero +0.009% FSO/°C
- Safe Overload: 150%, Ultimate Overload: 300%
- Bridge Resistance: 350 Ω minimum
- Construction: Stainless steel
- Electrical Connection: 1.5 m (5') 4-conductor shielded PTFE cable with temperature compensation board
- Protection Class: IP65
- Physical Dimensions: 22 mm diameter, length varies with capacity, mounting thread #6-32 UNC or #10-32, cable diameter 0.31 inches
- Capacity Range: 2.2 lb to 1000 lb (10 N to 5000 N)
Buy the Industrial Sensor 1000 lb – Reliable Tension and Compression Load Cell for Industrial Applications
Order the LCFD-1K load cell online today and enhance your industrial testing with precise, stable readings. Its stainless steel construction and IP65 protection ensure durability in tough environments. With excellent stability, minimal off-axis effects, and temperature compensation, it’s ideal for applications requiring high accuracy in tension and compression measurements. Fast shipping and easy installation make it the perfect choice for laboratories, manufacturing, and testing facilities seeking reliable load measurement solutions. Secure your order now for optimal performance and durability.
Buy the LCFD-1K load cell now and experience unmatched reliability and performance in tension and compression measurement tasks.
