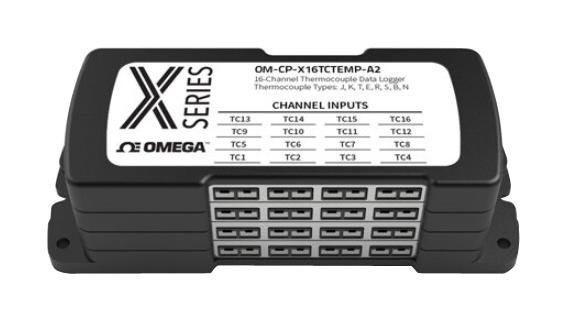

OMEGA OMCPX16TCTEMPA2 Thermocouple Data Logger
The OM-CP-TCTempX series is a 16-channel thermocouple data logger designed for remote temperature monitoring and multi-point data acquisition. It features a high memory capacity of over 131,000 readings per channel and supports a sampling rate of up to 4Hz, allowing for detailed temperature data collection. Each channel offers individual cold junction compensation for enhanced accuracy and response time. The device accepts various thermocouple types (J, K, T, E, R, S, B, N) and can be customized with user-defined channel names. It includes open channel detection, automatically annotates data if a probe is removed, and supports configuration for enabling or disabling channels to optimize memory. The logger operates within a temperature range of -20°C to +60°C, housed in a durable black anodized aluminum enclosure measuring 2.70 x 7.25 x 2.14 inches, and weighs approximately 800 grams. Power options include an external power supply or a user-replaceable 9V lithium battery, with an average lifespan of 18 months. The device connects via USB-A to Micro USB cable and is compatible with Windows XP SP3, 7, 8, and 10. It offers simple setup and operation, making it suitable for long-term deployment in various environments. A calibration certificate traceable to NIST is included for accuracy assurance.
OMEGA OMCPX16TCTEMPA2 Thermocouple Data Logger Specifications:
- Channels: 16 thermocouple inputs, each with individual cold junction compensation
- Thermocouple Types: J, K, T, E, R, S, B, N
- Temperature Range: -20°C to +60°C (-4°F to +140°F)
- Resolution: 0.01°C (0.018°F)
- Accuracy: 0.5°C (typical) within calibrated range
- Memory: 131,008 readings per channel, all channels enabled
- Sampling Rate: up to 4 Hz
- Power: External power or 9V lithium battery with 18 months typical life
- Dimensions: 2.70 in x 7.25 in x 2.14 in (65.6 mm x 184.2 mm x 54.4 mm)
- Weight: approximately 800 g (28 oz)
- Connection: USB-A to Micro USB cable, compatible with Windows XP SP3/7/8/10
- Enclosure: Black anodized aluminum
- Calibration: NIST traceable, automatically recorded within device
Buy the Omega 16-Channel Thermocouple Data Logger – Reliable Temperature Monitoring for Industrial Applications
Enhance your temperature monitoring with the Omega 16-channel thermocouple data logger. Supporting multiple thermocouple types, it offers high-resolution data capture at up to 4Hz sampling rate. Compact and durable, it’s ideal for remote and long-term environmental monitoring. Easy to set up and with a user-replaceable battery, this device provides over 131,000 readings per channel, ensuring detailed data collection. Perfect for industrial, research, or field applications, it comes with a NIST traceable calibration certificate for guaranteed accuracy. Order online today for reliable, long-term temperature data logging.
Order your Omega Series OM-CP-X16TCTEMP data logger today and enhance your projects with dependable multi-channel temperature monitoring capabilities.
Frequently Asked Questions
Where can I buy OMEGA OMCPX16TCTEMPA2?
You can click on the BUY or RFQ button to purchase OMCPX16TCTEMPA2 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OMCPX16TCTEMPA2?
You can download the OMCPX16TCTEMPA2 datasheet or visit the OMEGA website for support.
Who is the manufacturer of OMCPX16TCTEMPA2?
OMEGA
