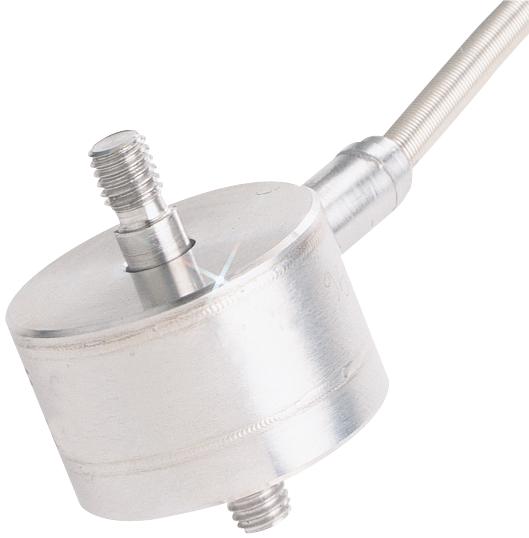

OMEGA LCFD1KG Miniature Load Cell
The LCFD and LCMFD series are high-precision, subminiature load cells designed for accurate tension and compression measurements in industrial applications. Made from stainless steel, these load cells feature internal design enhancements for long-term stability and minimal off-axis load effects. They operate with 5 V or 10 V excitation, offer outputs of 1.5 mV/V to 2 mV/V, and can withstand 150% overload. Suitable for various capacities from 2.2 lb to 1000 lb, they are IP65 rated with a temperature range of -54°C to 121°C, making them ideal for precision force measurement tasks.
OMEGA LCFD1KG Miniature Load Cell Specifications:
- Excitation: 5 Vde for 10 Ib/50 N, 10 Vde for 225 Ib/100 N
- Output: 1.5 mV/V at 10 Ib/50 N, 2 mV/V at 25 Ib/20 N
- Accuracy: ±0.15% FSO at 100 Ib/500 N, ±0.2% FSO at 25 Ib/20 N
- Temperature Range: -54°C to 121°C (operating), 16°C to 71°C (compensated)
- Zero Balance: +2% FSO
- Span Thermal Effect: +0.009% FSO/°C, Zero thermal effect: +0.009% FSO/°C
- Overload Rating: 150%, Ultimate Overload: 300%
- Bridge Resistance: Minimum 350 Ω
- Construction: Stainless steel
- Electrical Connection: 1.5 m shielded cable with 4 conductors
- Protection Class: IP65
- Dimensions vary by capacity, with overall length between 13 mm to 68 mm and diameters from 6 mm to 25.4 mm
Buy the Industrial Sensors 1000 lb Load Cell – Reliable Tension and Compression for Industrial Applications
Secure your precision force measurement needs with our high-quality miniature load cells designed for tension and compression. Made of stainless steel, these load cells provide stable, accurate readings over long periods, even in harsh environments with temperature ranges from -54°C to 121°C. They are IP65 rated for excellent protection and feature a compact size suitable for limited spaces. Whether for industrial, laboratory, or automation applications, buy online now to ensure reliable measurements with easy installation and proven durability.
Buy LCFD-1KG load cell now and experience unmatched reliability and performance for precise industrial force measurements with durable stainless steel design.
