OMEGA CT7114 Circular Chart Recorder

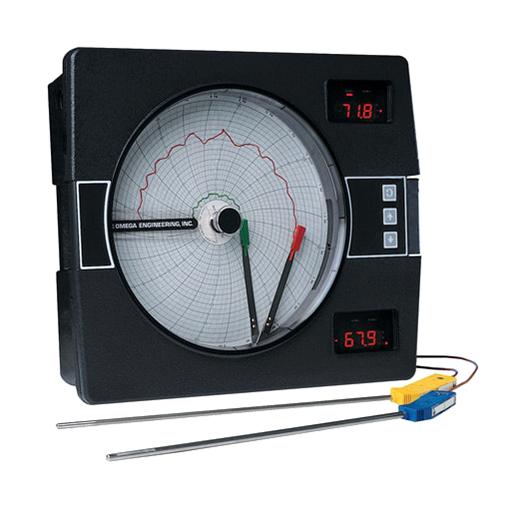

The CT7114 is a microprocessor-based circular chart recorder designed to measure, display, record, and control up to two process variables from various input signals. It features a 254 mm (10-inch) circular chart, a 4-digit LED display with adjustable resolution and filtering, and is equipped with two pens and four relays. The device accepts thermocouple, RTD, voltage, millivolt, or milliamp signals. Inputs are isolated, and programmable settings for inputs, speed, alarms, and other parameters can be easily configured via three front keys. The package includes the recorder, an operator's manual, pens, and 100 charts.
OMEGA CT7114 Circular Chart Recorder Specifications:
- Input Ranges: Thermocouple J: 0 to 760°C, K: 0 to 1360°C, T: -220 to 400°C, E: 0 to 750°C, N: 10 to 1300°C, R: 1200 to 1650°C, S: 1200 to 1650°C, B: 200 to 1650°C, C: 200 to 1800°C, others specified.
- Voltage Inputs: 0 to 25 mV, 0 to 50 mV, 10 to 50 mV, 0 to 5 V, 1 to 5 V.
- Milliamps: 4 to 20 mA DC, via external shunt resistor.
- Display: Two 7-segment, 14 mm LEDs, automatic decimal positioning, indications for alarms and status.
- Chart: Circular, 254 mm diameter, range -9999 to 9999, driven by DC stepper motor, user configurable rotation speed from 0.1 to 999.9 hours/rev.
- Physical: 335 mm high, 384 mm wide, 92 mm deep; weight 9.1 kg; panel cutout 321 x 343 mm; enclosure with gasketed cover, black, structural foam.
- Power: 115/230 Vac +10%, 50/60 Hz; 25 VA; operating temperature 0–55°C; storage -40 to 65°C; humidity 0–90%.
- Outputs: SPST relay, SSR driver, 0-20 or 4-20 mA DC; control parameters include proportional band, reset, cycle time, and rate.
- Additional features include calibration drift compensation, sensor fault detection, and memory backup with 5-year battery life.
