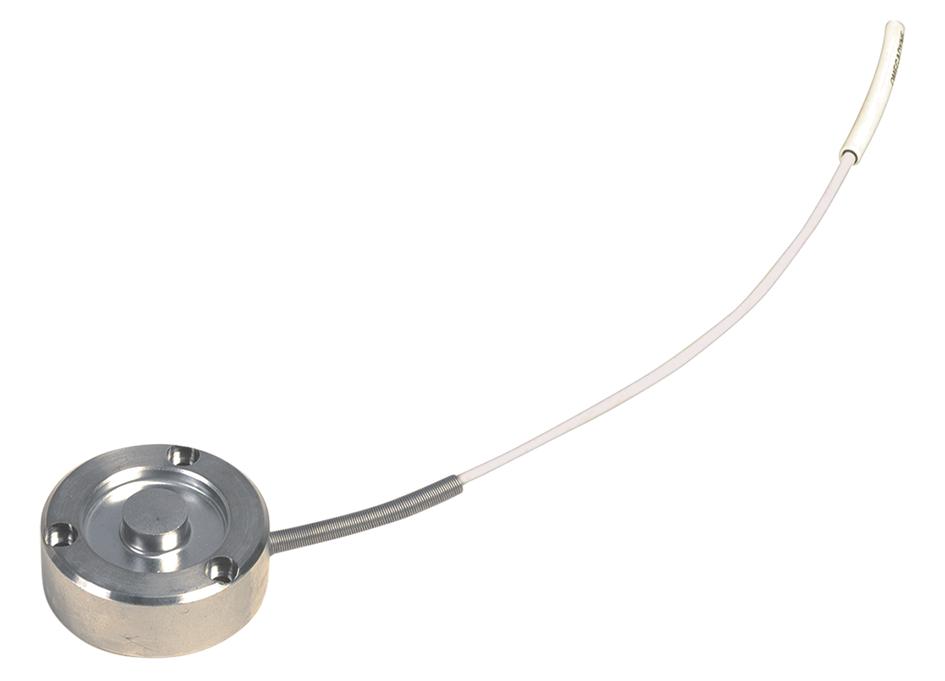

OMEGA LCGB10K compression load cell

The LCGB-10K miniature compression load cell offers high accuracy and durability in industrial environments. Made from stainless steel, it features a low-profile design with an integrated load button for even force distribution on a flat surface. Operating on 10V DC excitation with a nominal output of 2 mV/V, it provides linearity of ±0.25% FSO, hysteresis of ±0.20% FSO, and repeatability of ±0.10% FSO. It functions effectively from -54°C to 121°C, with an IP54 rating, 1.5m four-conductor cable, and calibration traceable to NIST, suitable for force measurement and sensing applications.

View LCGB10KDatasheet [pdf]

Buy the Buy Omega LCGB Series 10K Compression Load Cell Part Number LCGB-10K Online

Discover the high-quality Omega LCGB series 10K capacity miniature compression load cell designed for demanding industrial environments. Constructed from stainless steel, it provides excellent stability, accuracy, and durability. Easy to install on flat surfaces with an integrated load button for even force distribution. Operating on 10V DC with a 2 mV/V output, this load cell features linearity of ±0.25%, hysteresis of ±0.20%, and repeatability of ±0.10%. Its IP54 protection and NIST calibration make it ideal for force sensing, weighing, and measurement systems.

Order your Omega Series LCGB-10K 10,000 lb capacity compression load cell today and ensure reliable force measurement for your industrial applications.
