OMEGA PX309001G5V pressure transducer
The PX309 pressure transducer offers high-accuracy pressure measurement for industrial and instrumentation applications. Constructed from stainless steel, it provides excellent durability and corrosion resistance. With a 0 to 0.07 bar (0 to 1 psi) gauge pressure range, it features advanced silicon technology for ±0.25% full-scale accuracy at 25°C. The device outputs 0-5V DC, operates on 9-30V DC power, and is protected to IP65 standards for rugged environments. Its fast response time, stability, and resistance to shock and vibration make it ideal for precise pressure sensing over a wide temperature range of -40°C to 85°C.
OMEGA PX309001G5V pressure transducer Specifications:
- Pressure Range: 0 to 0.07 bar (0 to 1 psi gauge)
- Material: Stainless steel
- Output: 0 to 5 Vdc
- Excitation: 9 to 30 Vdc (<10 mA)
- Accuracy: ±0.25% FS at 25°C
- Zero Offset: +2% FSO; +4% for 1 and 2 psi ranges
- Span Setting: +2% FSO; +4% for 1 and 2 psi ranges
- Total Error Band: +2% FSO (includes linearity, hysteresis, repeatability, thermal effects)
- Long-Term Stability: ±0.25% beyond 1 year
- Response Time: <1 ms
- Shock Resistance: 50 g, 11 ms half-sine shock
- Vibration Resistance: +20 g
- Operating Temperature Range: -40°C to 85°C
- Protection Class: IP65
- Wetted Parts: 316 SS for all psia ranges and 1-50 psig; 17-4 PH SS for 100-10,000 psig
- Pressure Port: %-18 MNPT
- Weight: 155 g

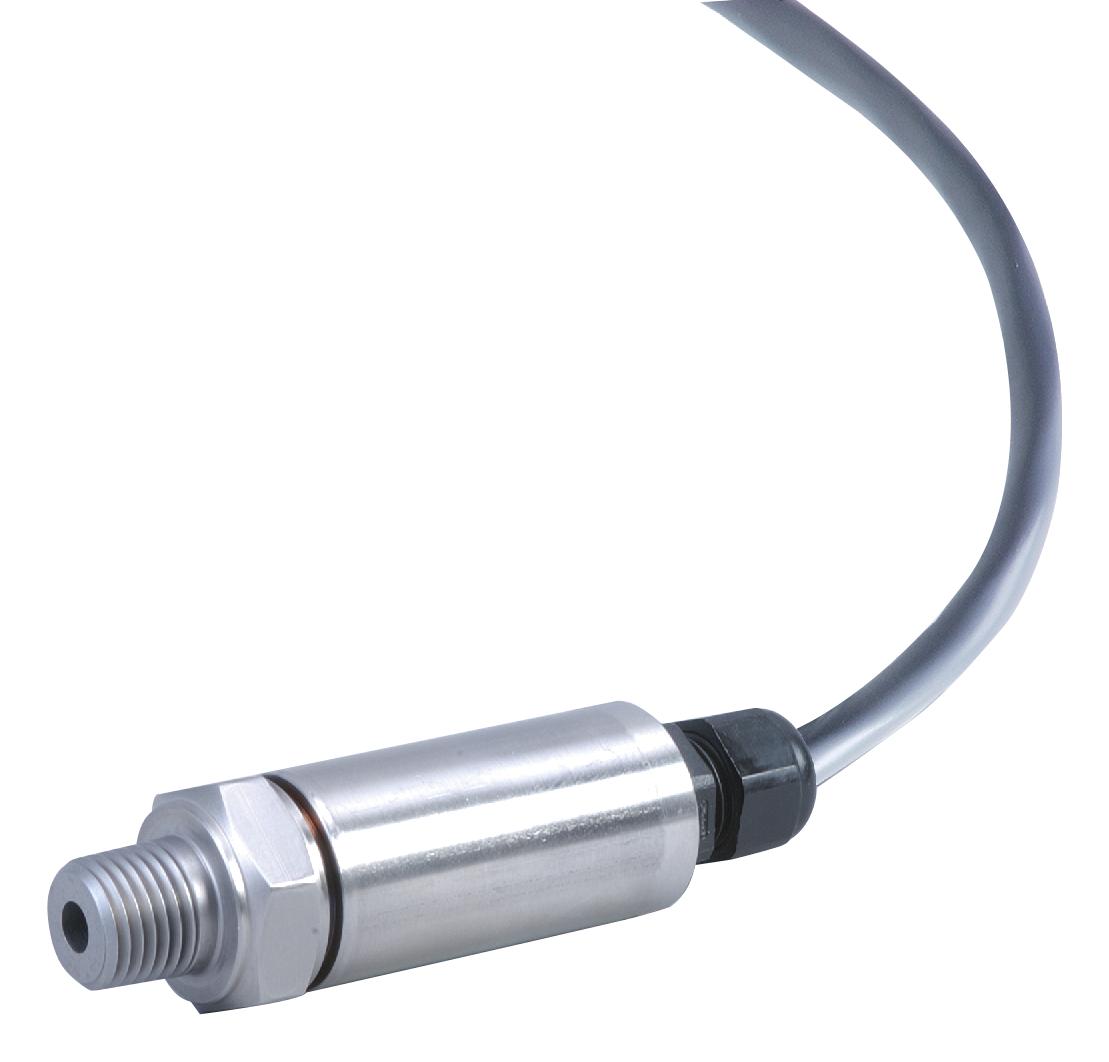

Buy the Omega PX309G5V Series Pressure Transducer: Accurate Industrial Measurement
Order the Omega PX309 pressure transducer online today to experience high-precision pressure measurement with stainless steel durability and rapid response time. Ideal for industrial and instrumentation applications, this rugged device offers IP65 protection, ±0.25% accuracy, and operation over a wide temperature range from -40°C to 85°C. Its 0-5V output, long-term stability, and resistance to shock and vibration make it the perfect choice for reliable and accurate pressure sensing in demanding environments. Easy to install and calibrate, ensuring optimal performance for your process needs.
Get Omega PX309 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy OMEGA PX309001G5V?
You can click on the BUY or RFQ button to purchase PX309001G5V from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX309001G5V?
You can download the PX309001G5V datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX309001G5V?
OMEGA
