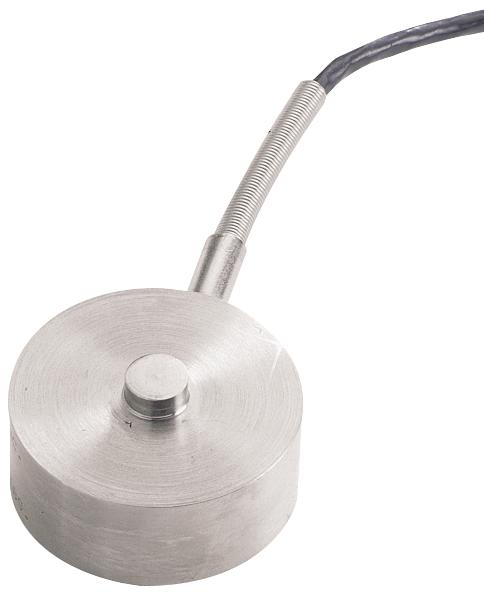

OMEGA LCGD2K Miniature Compression Load Cell
The Omega LCGD-2K is a compact, high-accuracy low-profile compression load cell designed for precise industrial weight measurement. Made from stainless steel, it offers excellent durability and long-term stability in harsh environments. The load cell features a flat mounting surface, integral load button, and standard IP65 protection. With a capacity of 0 to 2000 pounds, it operates on 10V DC excitation, producing a nominal 2 mV/V output. Capable of handling overloads up to 150% of capacity, it ensures reliable, accurate performance across a temperature range of -54°C to 121°C, making it ideal for demanding industrial applications.
OMEGA LCGD2K Miniature Compression Load Cell Specifications:
- Capacity: 0-2000 lb
- Material: Stainless steel
- Excitation: 10 V DC
- Output: 2 mV/V nominal
- Linearity: ±0.25% FSO
- Hysteresis: ±0.20% FSO
- Repeatability: ±0.10% FSO
- Zero Balance: ±2% FSO
- Operating Temperature: -54°C to 121°C
- Calibrated Temp Range: 16°C to 71°C
- Bridge Resistance: ≥350 ohms
- Deflection: 0.076 mm (0.003 inches)
- Protection Class: IP65
- Cable Length: 1.5 m (5') shielded cable
- Overload: Safe 150%, Ultimate 300%
Buy the Omega Series LCGD Load Cell: 2000 lb Capacity
Experience reliable, high-precision weight measurement with the Omega LCGD-2K miniature compression load cell. Its stainless steel construction ensures durability in tough environments, while its compact, low-profile design makes installation straightforward. With a capacity of 2000 pounds, 10V excitation, and 2 mV/V output, it delivers accurate readings for industrial weighing tasks. The load cell features excellent stability, withstands high overloads, and operates effectively across a wide temperature range, making it an ideal choice for demanding industrial settings.
Get Omega LCGD-2K today—built for precision and long-lasting durability in industrial weight measurement applications.
Frequently Asked Questions
Where can I buy OMEGA LCGD2K?
You can click on the BUY or RFQ button to purchase LCGD2K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCGD2K?
You can download the LCGD2K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCGD2K?
OMEGA
