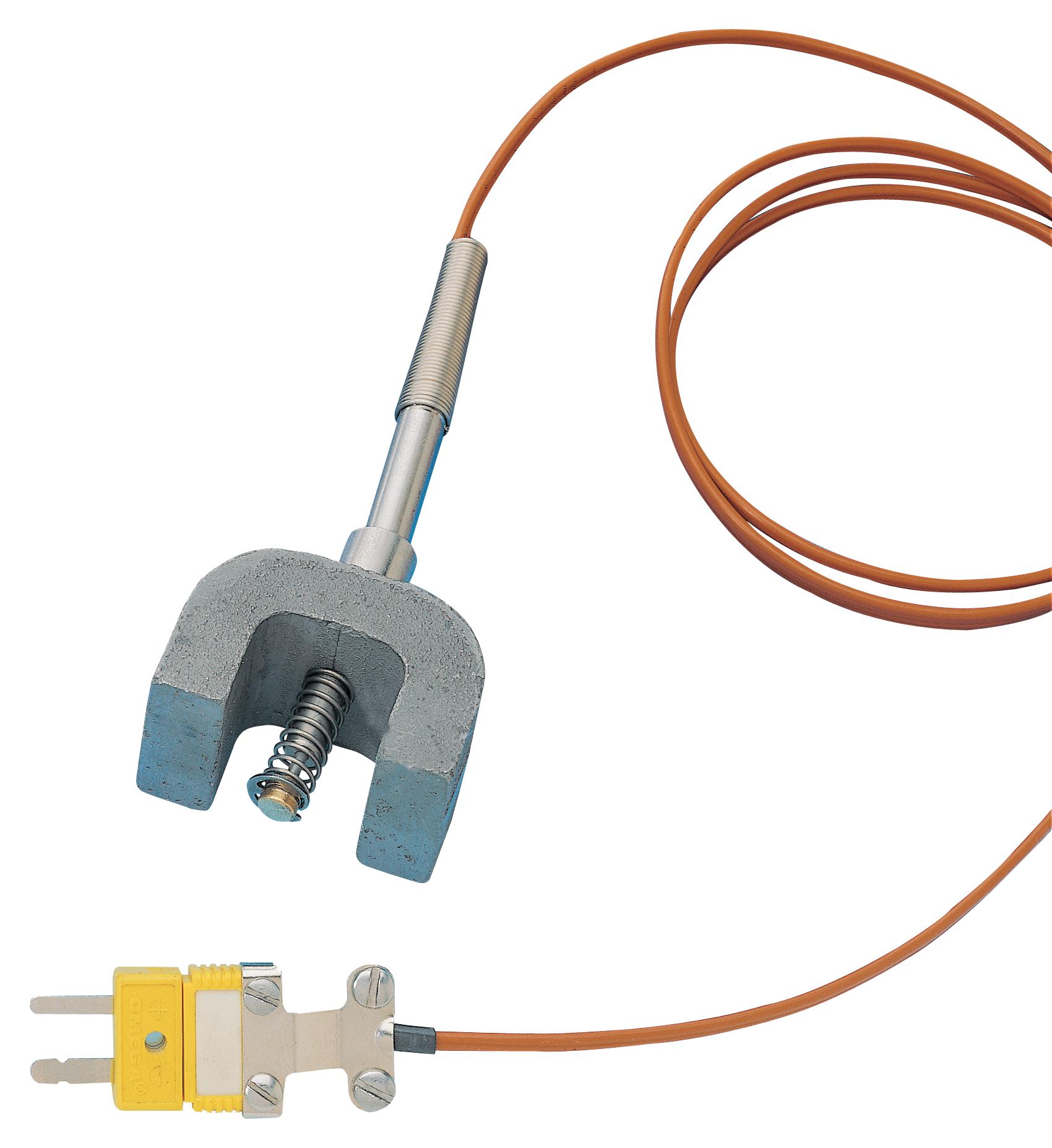

OMEGA MP1J36SMPWM Surface Magnet Mount Thermocouple
The MP1J36SMPWM is a compact surface magnet mount thermocouple featuring a SMPW subminiature connector with a write-on window, allowing easy identification. It includes a 1-meter SS overbraided lead wire, with optional PFA insulation available at an extra cost. The magnet dimensions are 25mm x 38mm x 25mm, and it’s designed to measure ferrous materials at temperatures up to 370°C (700°F). Standard with spring-mounted thermocouple and clamp, it provides reliable surface temperature measurement for industrial applications.
OMEGA MP1J36SMPWM Surface Magnet Mount Thermocouple Specifications:
- Lead Wires: 1 m (40 inches), SS overbraided, optional PFA insulated wire available at additional cost
- Magnet Dimensions: 25mm x 38mm x 25mm (1.0 x 1.5 x 1.0 inches)
- Temperature Rating: Up to 370°C (700°F)
- Connector: SMPW subminiature with write-on window
- Materials: Ferrous materials compatible, SS overbraid standard
- Calibration Types: J, K, E, T (specify type)
- Lead Wire Model: Standard with SS overbraid, optional PFA insulation suffix 'TT'
- Mounting: Spring-mounted thermocouple with clamp included
- Additional Lead Wire: Extra priced per foot
- Operation: Suitable for surface temperature measurement on ferrous materials
Buy the Buy Manufacturer Surface Magnet Mount Thermocouple Part Number MP1J36SMPWM Online
Order the Surface Magnet Mount Thermocouple online today for reliable surface temperature measurement on ferrous materials. This compact probe includes a SMPW connector with a write-on window for easy identification, and features a 1-meter SS overbraided lead wire standard. With a temperature rating up to 370°C (700°F), it’s ideal for precision industrial applications. Optional PFA insulated wires are available at an extra cost. The magnet’s compact size and spring-mounted thermocouple ensure secure attachment and accurate temperature readings in demanding environments. Perfect for manufacturers and maintenance professionals seeking durability and accuracy.
Get Manufacturer MP1J36SMPWM today—built for precision and long-lasting durability in surface temperature measurement with optional PFA insulation.
