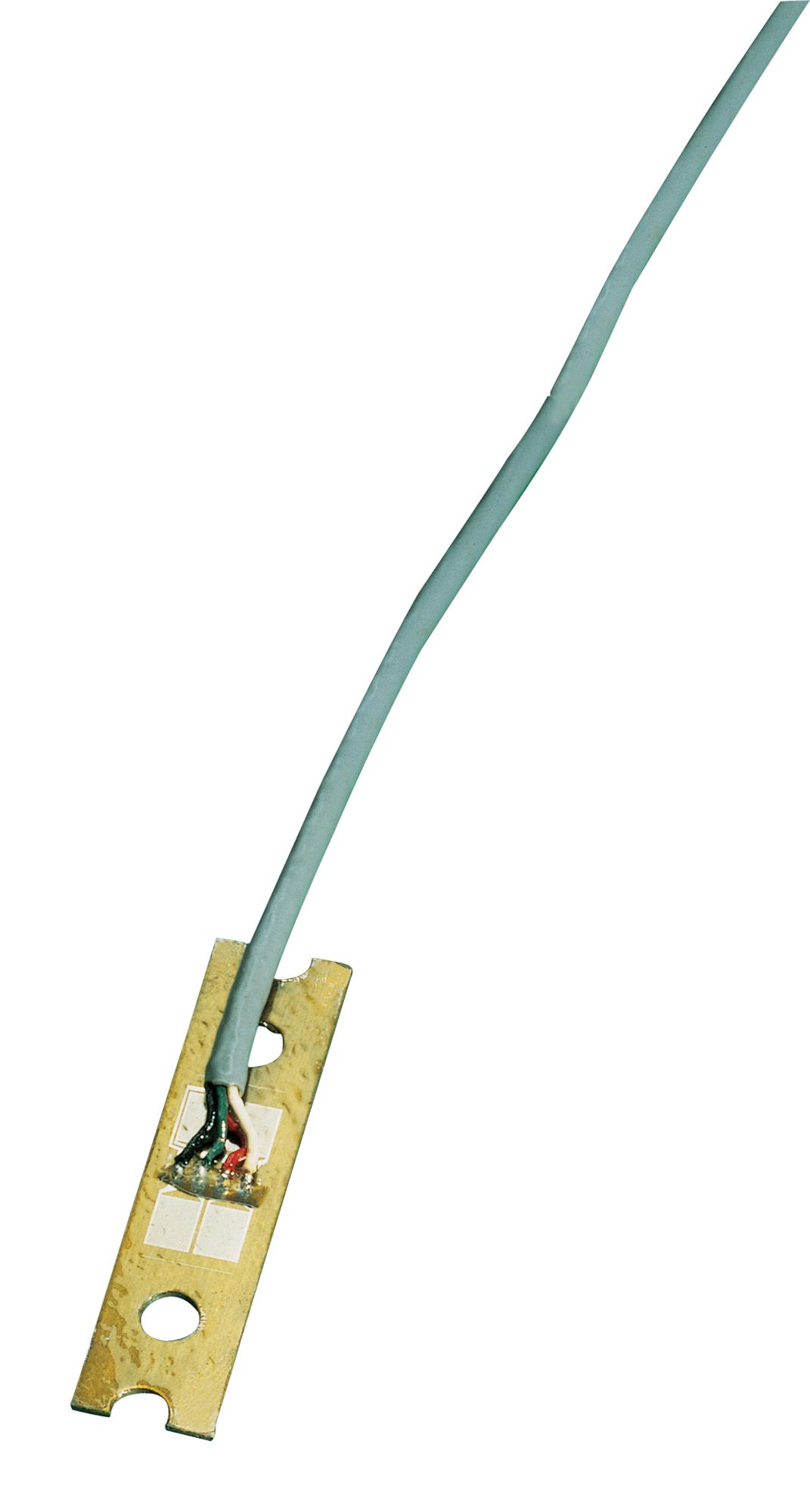

OMEGA LCL040 Full-bridge Load Cell
The LCL-040 from Omega is a full bridge, thin-beam load cell in the LCL series. It features a thermally matched, fully active, full-bridge strain gauge designed for optimal temperature compensation and stability. This load cell is suitable for measuring small loads accurately and is ideal for applications requiring frequent measurements. It is used across various industries, including medical instrumentation, home appliances, process control, robotics, and automotive sectors. The device incorporates an integrated strain gauge with built-in balancing, compensating, and conductive elements laminated onto the beam for enhanced reliability. It has a capacity of 18.14 kgf (40 lb), is compatible with specific digital meters, and operates with excitation voltages up to 12V DC. The rated output is 2mV/V ±20%, with a zero balance of 0.3mV/V and a combined error of 0.25% of full scale. The operational temperature range spans from -54°C to 93°C (-65°F to 200°F). Insulation resistance is rated at 1000 MΩ at 50V DC. The load cell is sealed with urethane coating for protection and can handle 150% full-scale overload. It comes with a 9-inch shielded PVC 4-conductor lead wire (30 AWG), made of 301 stainless steel, for force or displacement measurement.
OMEGA LCL040 Full-bridge Load Cell Specifications:
- Excitation: 5 Vdc, 12V max
- Rated Output: 2 mV/V ±20%
- Zero Balance: 0.3 mV/V
- Combined Error: 0.25% FS
- Operating Temperature: -54 to 93°C
- Compensated Temperature: -7 to 49°C
- Resistance (Input and Output): 1200 ±300 Q
- Insulation Resistance: 1000 MΩ @ 50 Vdc
- Seal: Urethane coated
- Safe Overload: 150% FS
- Full Scale Deflection: 0.25 to 1.27 mm
- Lead Wire: 9-inch shielded PVC, 30 AWG
- Material: 301 stainless steel (for ≥816 gf), Beryllium copper (<816 gf)
Buy the Buy Omega Load Cell Part Number LCL040 Online
Purchase the Omega LCL-040 full-bridge load cell online for accurate small load measurement in industrial, medical, and robotics environments. Engineered for stability and reliability, it features a fully active strain gauge with optimal temperature compensation. With a capacity of 18.14 kgf (40 lb), it operates at excitation voltages up to 12V DC and provides a rated output of 2mV/V. Sealed with urethane coating, it handles 150% overload safely. Compatible with digital meters, it includes a durable 9-inch shielded PVC lead wire for versatile force or displacement measurement.
Get Omega LCL-040 today—built for precision and long-lasting durability in force measurement applications.
Frequently Asked Questions
Where can I buy OMEGA LCL040?
You can click on the BUY or RFQ button to purchase LCL040 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCL040?
You can download the LCL040 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCL040?
OMEGA
