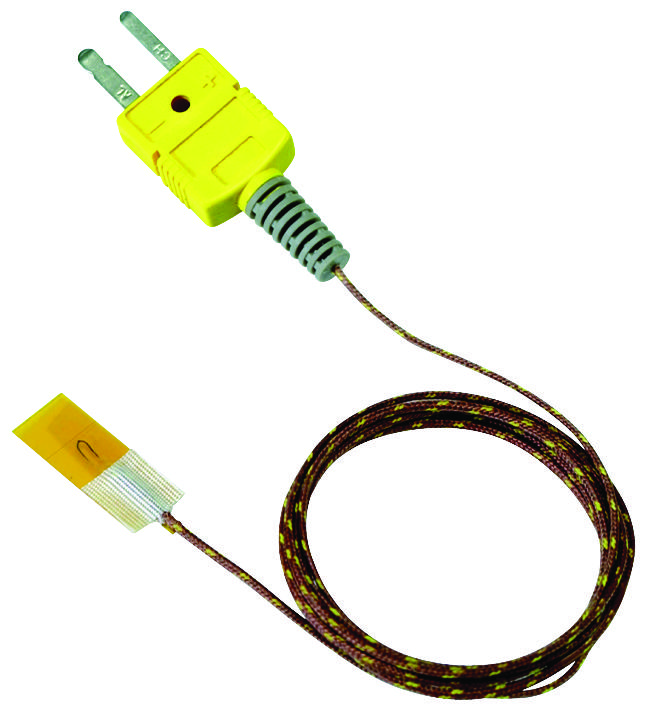

OMEGA SA1XLT120SRTC Surface Thermocouple
The SA1XLT120SRTC is a high-performance surface thermocouple designed for rapid temperature measurement in industrial environments. It features fiberglass-insulated leads rated up to 482°C, with options for self-adhesive or cement-on installation. The thermocouple includes a molded miniature connector with strain relief, available in various lengths including 120 inches. It is suitable for temperatures up to 315°C when cemented, offering fast response times under 0.15 seconds. Durable with optional stainless steel overbraid, it ensures precise and reliable readings for industrial process monitoring and control.
OMEGA SA1XLT120SRTC Surface Thermocouple Specifications:
- Temperature Rating: Up to 315°C (600°F) when cemented, insulation rated to 482°C (900°F)
- Lead Wire: Fiberglass-insulated, 30 AWG
- Lead Lengths: 1 m (40 inches), 2 m (80 inches), 3 m (120 inches)
- Response Time: Less than 0.15 seconds
- Connector: Molded miniature with optional strain relief
- With optional stainless steel overbraid, model suffix '-SB'
- Dimensions: Strip Length: 25.4 mm (1 inch), Bare wire length 12.7 mm (0.5 inches)
- Construction: Polyimide insulation, fiberglass junction, self-adhesive backing, rated to 260°C (500°F)
- Calibration: J, K, T, E, or Bare sensing elements
Buy the Omega SA1XLT120SRTC – Reliable Surface Thermocouple for Industrial Applications
Enhance your industrial temperature monitoring with the Omega SA1XLT120SRTC surface thermocouple. Designed for rapid response and high-temperature durability, it features fiberglass-insulated leads rated to 482°C, molded connectors, and optional stainless steel overbraid for added protection. Available in various lengths, it can be self-adhesive or cemented for secure installation. Ideal for electronic component testing, fabrication, and process control, this thermocouple ensures accurate and quick readings, boosting operational efficiency and safety in demanding environments.
Buy Omega SA1XLT120SRTC now and experience unmatched reliability and fast temperature response in harsh industrial environments.
