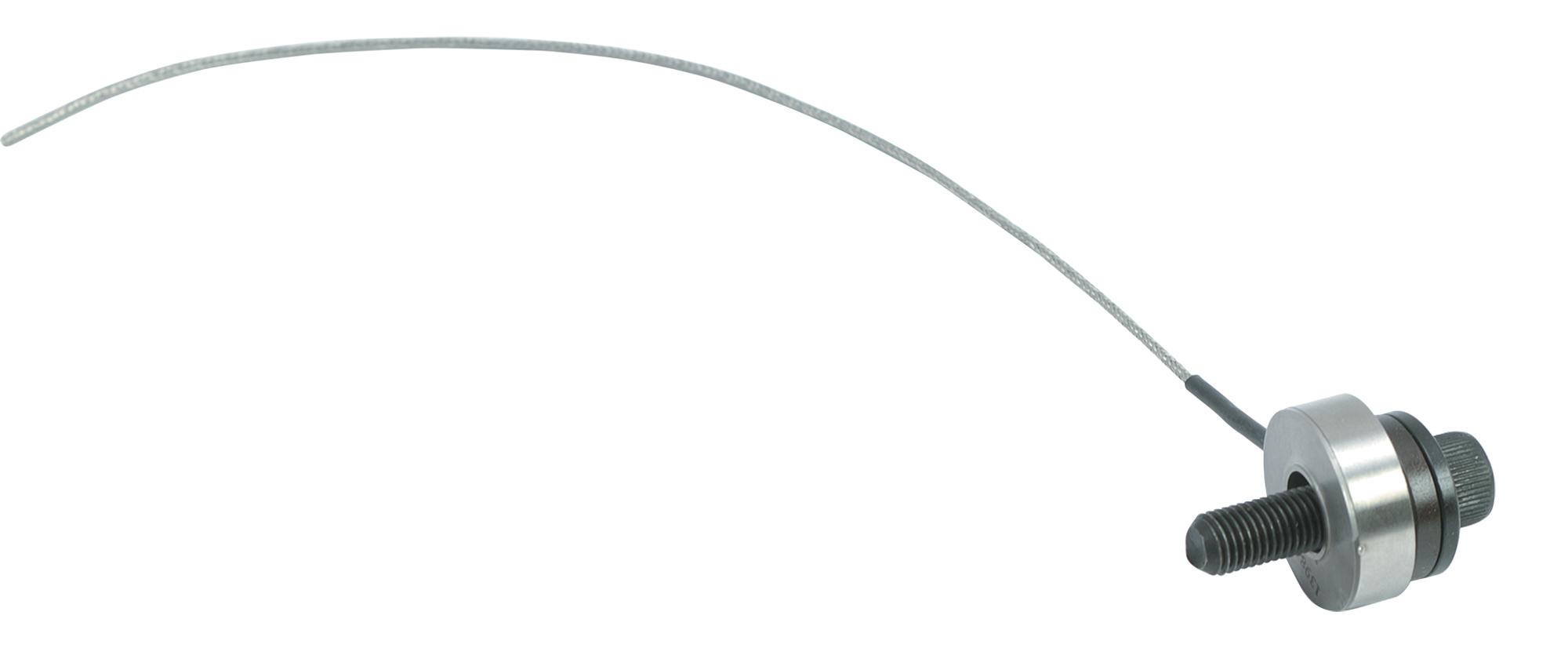

OMEGA LCWD100K Load Washer
The LCWD-100K from Omega is a high-capacity load washer designed for measuring bolt compressional forces. It features a compact design with spherical washers, recommended for use with bolts, and load buttons for functioning as a compression load cell. This model has a capacity of 100,000 lbs (444,840 N). It is compatible with DP41-S, DP25B-S (4-digit meters), and DPiS (4-digit meters). The sensor operates on a 10VDC excitation voltage, with a maximum of 15V, providing a nominal output of 2mV/V. It offers an accuracy of ±0.75% BFSL (linearity, hysteresis, and repeatability), a zero balance of ±4.0% of full-scale output, and an operating temperature range from -40°C to 127°C. The load washer can withstand safe overloads of 120% of capacity and ultimate overloads of 200%. It features a typical full-scale deflection of 0.001 inches. Constructed from stainless steel, it includes a 1.5-meter (5-foot) insulated, shielded electrical cable. The package contains the load washer, spherical washers, a set of load buttons, one set of NIST-traceable calibration data, and a 59Kohm shunt resistor. Please note that this unit is not field-serviceable, and tampering or modification will void the warranty and may be hazardous. Appropriate safety equipment should be used during testing and installation.
OMEGA LCWD100K Load Washer Specifications:
- Capacity: 100,000 lbs (444,840 N)
- Material: Stainless Steel
- Full Scale Deflection: 0.001"
- Operation Temp Range: -40°C to 127°C
- Zero Balance: ±4.0% FSO
- Accuracy: ±0.75% BFSL
- Overload Safety: 120% of capacity, 200% ultimate
- Excitation Voltage: 10VDC (max 15V)
- Output: 2mV/V nominal at 2kN/500 lbs
- Cable: 1.5 meters (5 ft), insulated and shielded
- Includes spherical washers, load buttons, NIST calibration, shunt resistor
Buy the Omega LCWD-100K – Reliable Load Washer for Industrial Applications
Purchase the Omega LCWD-100K load washer online today to achieve highly accurate bolt compression measurements. Featuring stainless steel build, spherical washers, load buttons, and NIST calibration, this durable device delivers reliable performance in demanding industrial environments. The easy-to-install design includes a shielded 1.5-meter cable and operates on a 10VDC excitation, withstanding overloads up to 120% of capacity. Simplify your force testing needs by ordering this essential component online, ensuring calibration accuracy, safety, and long-term durability for your projects.
Order your Omega LCWD-100K load washer today and ensure precise bolt force measurements with dependable, stainless steel construction for industrial use.
Frequently Asked Questions
Where can I buy OMEGA LCWD100K?
You can click on the BUY or RFQ button to purchase LCWD100K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCWD100K?
You can download the LCWD100K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCWD100K?
OMEGA
