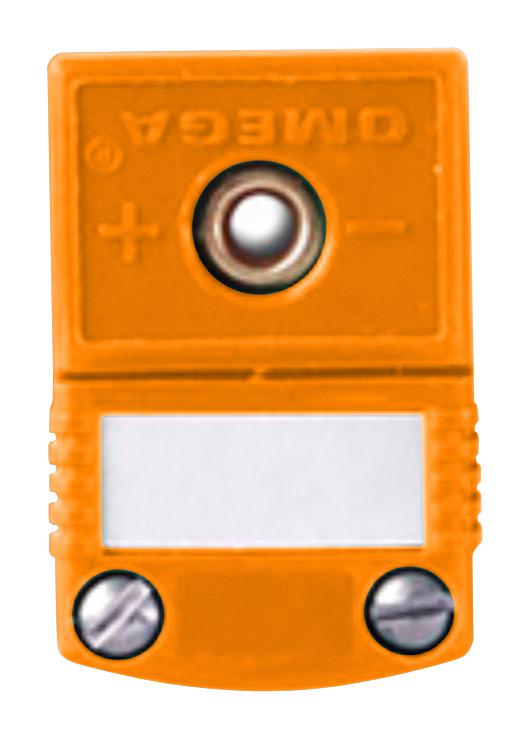

OMEGA SMPWNIF Thermocouple Connector
The SMPW connector is a miniature, high-performance electrical connector designed for precise thermocouple applications, compatible with Type B thermocouples and available in various sizes. Made from durable glass-filled nylon and liquid crystal polymer, it features color-coded construction for easy identification, quick connect washers, internal wire dividers, and reversible write-on windows for identification. Suitable for temperature ranges from -29°C to 180°C or up to 260°C, it supports stranded or solid wire up to 20 AWG. Its robust design ensures reliable electrical connections in industrial environments requiring resistance to high temperatures and environmental factors.
OMEGA SMPWNIF Thermocouple Connector Specifications:
- Material: Glass-filled nylon for SMPW, Liquid crystal polymer for HMPW
- Service Temperature: -29°C to 180°C for SMPW, -29°C to 260°C for HMPW
- Wire Compatibility: Stranded or solid wire up to 20 AWG
- Dimensions: Small actual size, with wire hole diameter of approximately 3.3 mm (0.13 inches)
- Color Coding: Yellow, blue, black, purple, orange, and other ANSI colors
- Connector Type: Male and female, quick connect, reversible write-on windows
- Construction: Heavy-duty, environmentally friendly with captive cover screws
- Suitable for: Type K, J, T, E, R, S, and B thermocouples, in industrial applications
- Additional Features: Internal wire divider, crimp style brass and stainless steel bushings, and optional EMI cable clamp
- Temperature Resistance: Discoloration possible between 150°C and 180°C, but electrical properties remain unaffected
Buy the Omega SMPW – Reliable Thermocouple Connectors for Industrial Applications
Secure your high-temperature thermocouple connections with Omega SMPW connectors. These miniature, durable connectors feature quick connect technology, reversible write-on windows for easy identification, and are made from heat-resistant materials suitable for temperatures up to 260°C. Color-coded for easy setup, they support solid and stranded wires up to 20 AWG. Perfect for industrial sensors, process control, and temperature measurement, these connectors ensure reliable, safe, and efficient electrical connections in demanding environments. Purchase online today for fast, dependable delivery.
Buy Omega SMPW connectors now and experience unmatched reliability and performance in high-temperature thermocouple wiring.
Frequently Asked Questions
Where can I buy OMEGA SMPWNIF?
You can click on the BUY or RFQ button to purchase SMPWNIF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SMPWNIF?
You can download the SMPWNIF datasheet or visit the OMEGA website for support.
Who is the manufacturer of SMPWNIF?
OMEGA
