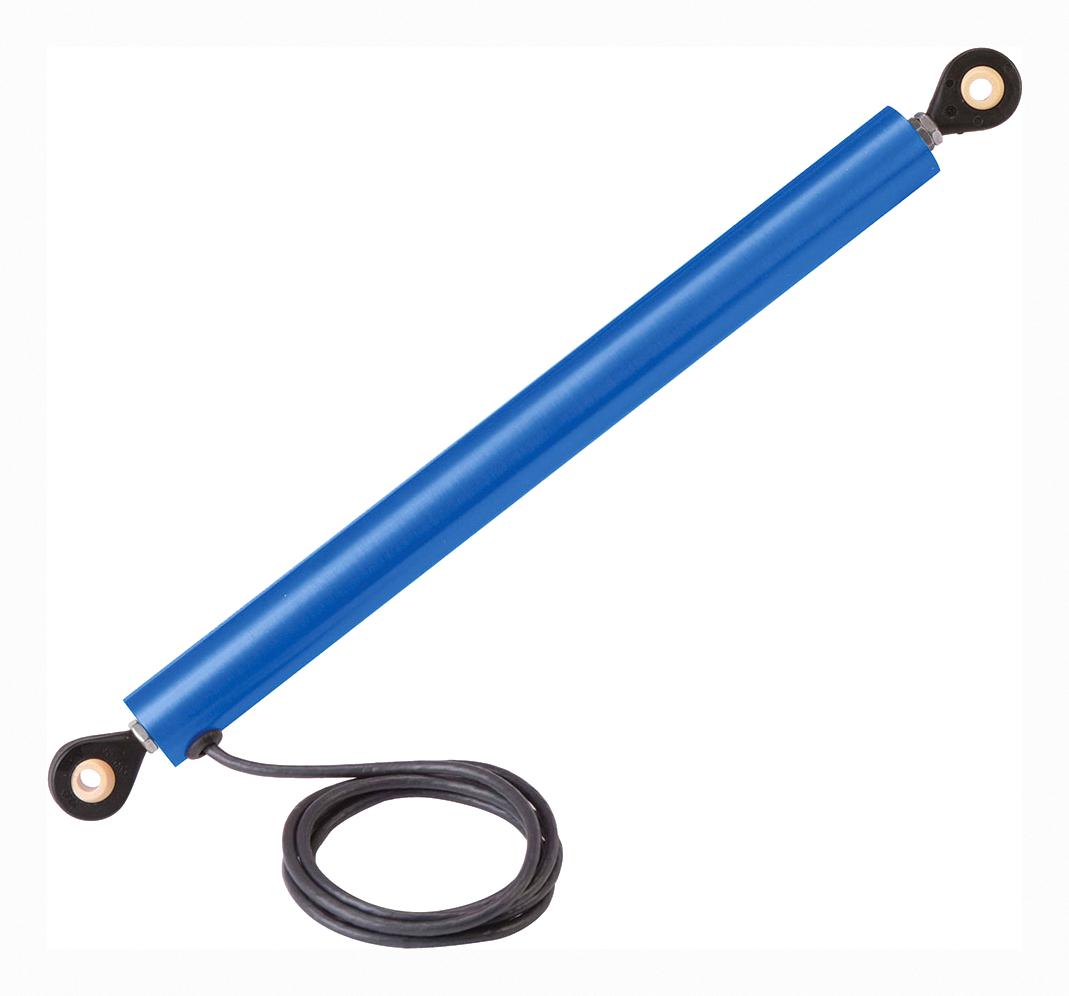

OMEGA LDI119050A010A Linear Position Sensor
The LDI-119 Series Linear Variable Inductive Transducers (LVIT) are contactless position sensors offering high accuracy and robustness for industrial automation. Designed with an aluminum housing sealed to IP67, these sensors operate reliably in harsh environments with vibration, shock, and humidity. Available in multiple full-scale ranges from 25 to 200 mm, they provide 0 to 10V or 4 to 20mA outputs, featuring field programmability. Ideal for factory automation, automotive testing, wind turbines, and packing equipment, they ensure precise measurement with an excellent stroke-to-length ratio and easy installation with radial cable exit and swivel rod eye ends.
OMEGA LDI119050A010A Linear Position Sensor Specifications:
- Measuring Range: 25 to 200 mm (1 to 8 inch) full scale
- Output Options: 0 to 10V with 12 to 30V input, max 35 mA; 4 to 20 mA with 18 to 30V input, max 60 mA
- Linearity Error: ±0.15% of Full Scale Output (FSO) typical, ±0.25% max
- Resolution: 0.025% of FS
- Update Rate: 300 Hz
- Operating Temperature: -20°C to 85°C
- Temperature Coefficient: 0.015% of FS/°C
- Vibration: 5 to 20 Hz, 0.5
- 20
- 2000
- 4.2
- 0.5
- 2
- 0.17
- 1000
- 11
- 0.4
- 95
- 95
- IP67, Aluminum
- Housing Material: Anodized Aluminum
- Sealing: IP67
- Cable Exit: Radial with swivel rod eye ends
- Cable Length: 1 m (standard) with options up to 10.5 inches
- Shock Resistance: 1000 g, 11 ms
- Humidity: 95% RH non-condensing
- Vibration: 5 to 20 Hz, 0.5
- 20
- 2000
- 4.2
- 0.5
- 2
- 0.17
- 1000
- 11
- 0.4
- 95
- 95
- Factory automation, automotive testing, wind turbines, industrial controls
Buy the Omega LDI-119 Reliable Position Sensors for Industrial Applications
Discover the reliable and precise Omega LDI-119 series linear position sensors available online. With options supporting 0–10V or 4–20mA outputs, these durable sensors are perfect for automation, automotive testing, wind turbines, and industrial environments. They feature aluminum sealed IP67 housing, radial cable exit, and ships with swivel rod eye ends for easy mounting. Designed to operate under harsh conditions, these contactless sensors ensure long-term performance with high accuracy, low linearity error, and field programmability, making them ideal for critical industrial measurement applications.
Order your Omega Series LDI-119 150 mm range contactless linear transducer today and enhance your industrial automation with dependable accuracy.
