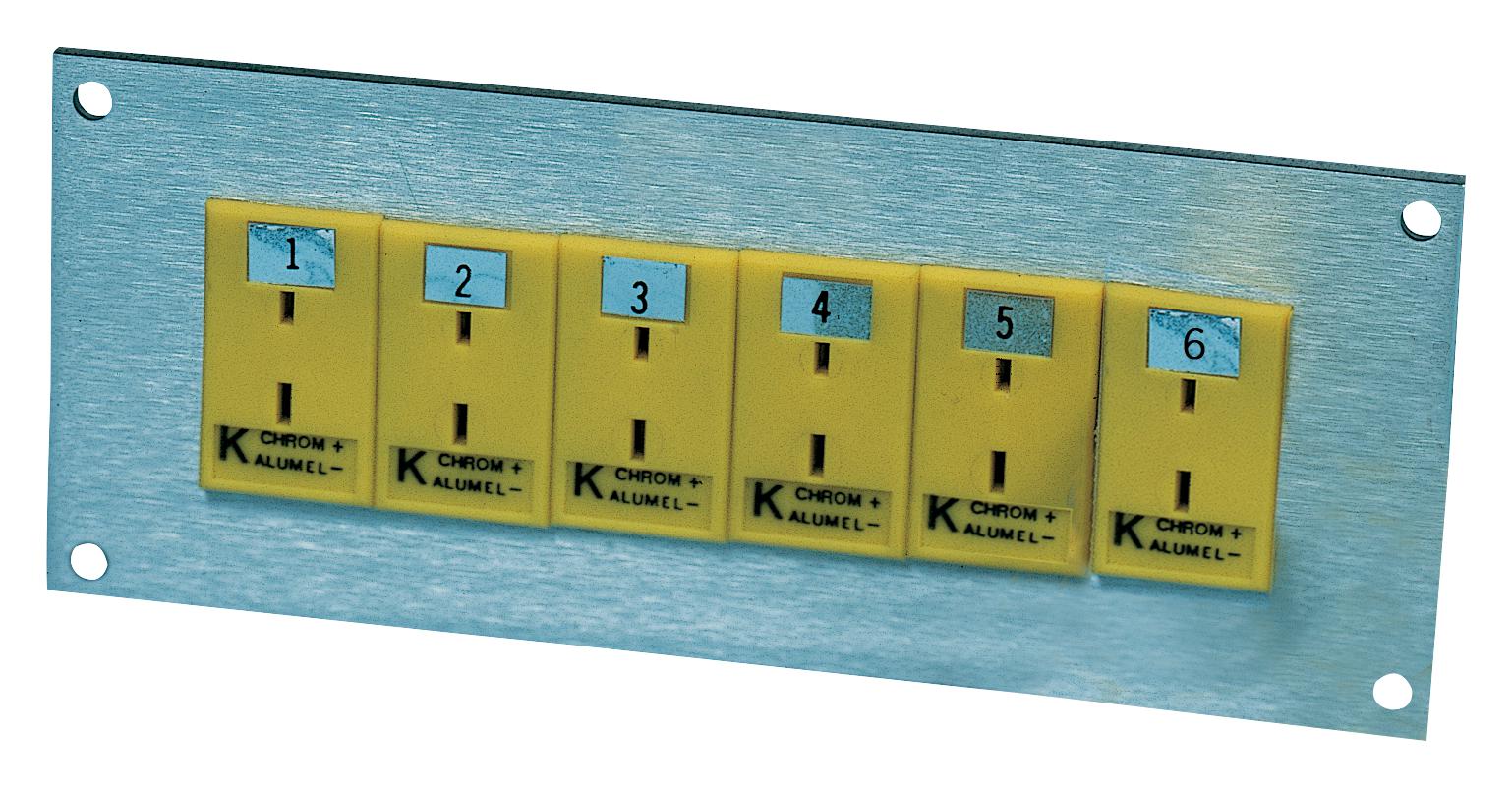

OMEGA MJP106K Miniature Jack Panels
Omega miniature jack panels are durable, color-coded aluminum panels with high-impact plastic connector jacks, suitable for thermocouple calibrations. They are crafted from rugged 2.3 mm anodized aluminum with a brushed finish for enhanced durability and corrosion resistance. These panels accommodate all miniature male connectors of 3.3 mm or 2.3 mm thickness, with spacing of 3.3 mm on both sides. The molded connector bodies withstand service temperatures up to 205°C, making them ideal for precise, customizable thermocouple and electronic testing solutions with various configurations, including switches and meters. The panels include dust caps for protection and are assembled at no extra cost, ensuring quality and value.
OMEGA MJP106K Miniature Jack Panels Specifications:
- Material: Anodized aluminum, clear finish
- Panel Thickness: 2.3 mm (0.09 inches)
- Connector Body: Molded high-impact plastic
- Maximum Service Temperature: 205°C (401°F)
- Mounting Hole Diameter: 3.3 mm (0.13 inches)
- Panel Dimensions: Various lengths (111mm, 207mm, 302mm)
- Connector Compatibility: Miniature male connectors 3.3 mm and 2.3 mm
- Dust Caps: MPJ-CAP-12, package of 12
- Color Coding: IEC standards
- Custom Options: Includes switches, meters, thermocouple calibrations
- Assembly: No extra cost
- Price and size options vary based on configuration
- Model Examples: MJP1-06, MJP2-12, MJP3-18, MJP4-24
Buy the Omega Series Miniature Jack Panels: MJP106K
Order Omega miniature jack panels online now for reliable, durable, and customizable thermocouple testing solutions. These anodized aluminum panels feature high-impact plastic jacks rated for up to 205°C, with IEC color coding for easy identification. Available in various sizes and configurations, including options for switches and meters, all assembled at no extra cost. Ensure accurate, safe testing in industrial or laboratory environments with these rugged, corrosion-resistant panels. Purchase today for fast delivery and expert support to meet your project needs.
Buy Omega MJP106K miniature jack panel now and experience high durability, customizable thermocouple connections, and hassle-free assembly.
