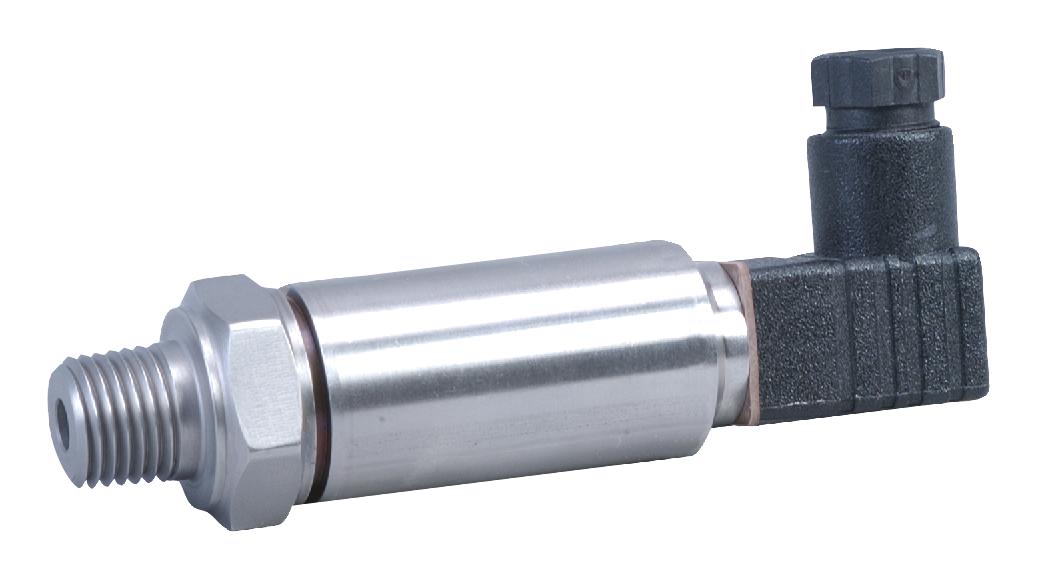

OMEGA PX319V100G5V Pressure Transducer
The pressure transducer features all stainless steel construction for durability in industrial environments, offering ranges from 0-1 to 0-10,000 psi with high accuracy. It provides 0-5 V, 4-20 mA, and 100 mV outputs suitable for gage, absolute, or vacuum pressure measurements. Rugged solid-state design ensures high stability and low drift with a static accuracy of ±0.25%. The unit is IP65 rated, compatible with various cables and connectors, includes a 5-point NIST-traceable calibration, and can withstand pressure cycles up to 10 million for reliable long-term operation in demanding applications.
OMEGA PX319V100G5V Pressure Transducer Specifications:
- Material: All stainless steel construction
- Pressure ranges: 0-1 to 0-10,000 psi, -15 to 50 psig, 0 to 1000 psia, 100 to 10,000 psig
- Outputs: 0-5 V, 4-20 mA, and 100 mV
- Accuracy: ±0.25% static accuracy
- Protection: IP65 rated
- Pressure port: 4-18 MNPT
- Temperature range: -40 to 85°C
- Pressure port material: 316 SS for low ranges; 17-4 PH SS for high ranges
- Response time: <1 millisecond
- Vibration: +20 g
- Shock: 50 g, 11 ms half-sine
- Calibration: 5-point NIST-traceable
- Resistance between body and wire: ≥1 MΩ @ 25 Vdc
- Pressure cycles: Up to 10 million cycles
- Overpressure limit: 3× rated pressure for low ranges, 2× for high ranges
- Weight: 154 g (PX309), 100 g (PX319, PX329, PX359)
Buy the Omega PX319V100G5V – Reliable Pressure Sensor for Industrial Applications
Order the Omega PX319V100G5V pressure transducer online today and enjoy fast delivery, guaranteed calibration accuracy, and comprehensive support. Designed for durability and precise pressure measurement, this stainless steel transducer features multiple output options including 0-5 V, 4-20 mA, and 100 mV. It’s suitable for gage, absolute, or vacuum pressure applications, with an IP65 rating for protection against dust and water. Trust Omega for quality sensing solutions that ensure reliable performance in demanding industrial environments. Purchase now for seamless integration and long-term operational stability.
Buy Omega PX319V100G5V now and experience unmatched reliability and high-precision pressure measurement for your industrial needs.
Frequently Asked Questions
Where can I buy OMEGA PX319V100G5V?
You can click on the BUY or RFQ button to purchase PX319V100G5V from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX319V100G5V?
You can download the PX319V100G5V datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX319V100G5V?
OMEGA
