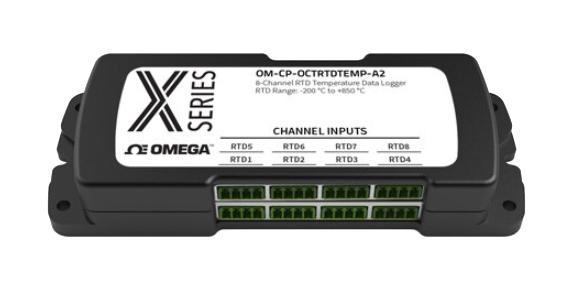

OMEGA OMCPOCTRTDTEMPA2 RTD Temperature Data Logger
The OM-CP-RTDTempX series is an 8-channel RTD temperature data logger designed for accurate temperature measurement from -200°C to +850°C, depending on the probe. It features a high memory capacity, allowing up to 349,354 readings per channel, and supports a sampling rate of up to 4Hz. Each channel can be named with a up to ten-digit label for easy identification. The device offers calibrated accuracy of ±0.04°C with real-time operation and a temperature resolution of 0.001°C. It is powered by a 9V lithium battery with an expected life of approximately 18 months and includes a NIST-traceable calibration certificate. The logger can be started via pushbutton or programmable start, and data can be downloaded smoothly through a USB-A to Micro USB cable using free Windows-compatible software. Data is accessible in graphical, tabular, and statistical formats, with options to view in multiple units and export to Excel for further analysis. The device features a durable black anodized aluminum enclosure, dimensions of 2.70 x 7.25 x 1.22 inches, and a weight of 368 grams, suitable for external power or user-replaceable batteries.
OMEGA OMCPOCTRTDTEMPA2 RTD Temperature Data Logger Specifications:
- Temperature Range: -200 °C to +850 °C (-328 °F to +1562 °F), probe dependent
- Resolution: 0.001 °C (0.0018 °F), probe dependent
- Calibrated Accuracy: ±0.04°C at 25°C, specified from 18.59 to 175.90°C
- Input Connection: Removable screw terminal; 2, 3, or 4 wire interface
- Temperature Coefficient: 2 ppm/°C typical
- Memory: 349,354 readings per channel for 8-channel logger
- Start Modes: Immediate or delay start, programmable up to 6 months in advance
- Data Recording: Real-time monitoring with USB-A to micro USB cable
- Battery: 9V lithium, approximately 18 months life, user replaceable
- Dimensions: 2.70 in x 7.25 in x 1.68 in
- Weight: 13 oz (368 g)
- Enclosure: Black anodized aluminum
- Compliance: CE, RoHS
Buy the Omega Series RTD Temperature Data Logger: OM-CP-X12RTDTEMP-A2
Order the Omega RTD Temperature Data Logger today and benefit from high accuracy, extensive memory capacity, and real-time data acquisition. Designed with 8 channels for precise temperature monitoring from -200°C to +850°C, it features an easy start option via pushbutton or programmable schedule. Its durable aluminum enclosure ensures longevity, making it ideal for demanding environments. With simple data download via USB and compatibility with Windows software, this device streamlines your temperature data management. Enhance your process control today by purchasing online!
Buy Omega OM-CP-X12RTDTEMP-A2 now and experience unmatched reliability and performance in precision temperature measurement.
