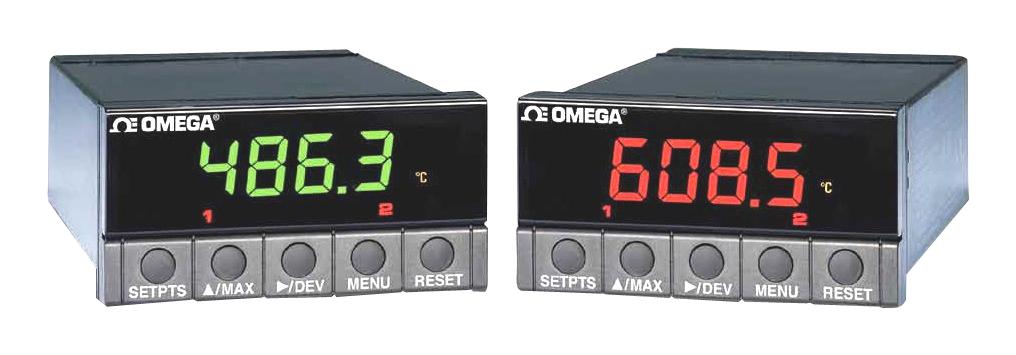

OMEGA DP25BSAR Digital Panel Meter
The DP25B Series meters are versatile, microprocessor-based panel meters that display process, strain, and temperature signals with high accuracy. Features include a large, bright 4-digit, 9-segment LED display in user-selectable colors: red, amber, or green. They support thermocouple, RTD, process voltage/current, and strain gauge inputs, with options for relay alarms and scaled analog outputs (0-10 V, 4-20 mA, or 0-20 mA). Built-in excitation for transducers, dual relays, and PCI compliance make these meters ideal for demanding industrial and laboratory environments.
OMEGA DP25BSAR Digital Panel Meter Specifications:
- Display: 4-digit, 9-segment, 21 mm high LED in red, amber or green (programmable)
- Analog-to-Digital Technique: Dual slope, 15-bit resolution
- Read Rate: 3 samples/sec, Step Response: 2 sec
- Relay Outputs: 2 SPDT relays rated 5 A 250 V AC, programmable for alarms
- Analog Output: Optional, 0-10 V, 4-20 mA, or 0-20 mA, scalable for control or retransmission
- Power Supply: 115 Vac or 230 Vac (+10%), or 10-32 Vdc, 26-56 Vdc (8-11 W)
- Isolation: Dielectric strength to 2500 V, EMC immunity compliant
- Operating Temperature: 0-50°C, Storage: -40 to 85°C
- Dimensions: 96 mm width x 48 mm height x 152 mm depth, Panel cutout 45 mm x 92 mm
- Input Types: Thermocouples (J, K, T, DIN), RTD (Pt 100), process voltage/current, strain gauges
- Accuracy: ±0.5°C for thermocouple after warm-up, ±0.03% rdg for strain/process
- Additional features: Low-voltage power options, remote tare, front panel scaling
Buy the Omega Series DP25B Temperature Process Strain Meter: DP25BSAR
Enhance your industrial measurement setup with the Omega DP25BSAR digital panel meter. Featuring a vivid LED display in adjustable colors, it offers precise measurement of temperature, process signals, strain, and more. With versatile inputs, optional relay alarms, and scalable analog outputs, it’s ideal for demanding environments. Easy to configure with front-panel controls, built-in excitation, and high accuracy, this meter ensures reliable operation. Order online today for efficient, accurate monitoring in laboratory, manufacturing, or industrial applications.
Buy Omega DP25BSAR now and experience unmatched reliability and performance for your process and temperature monitoring needs.
