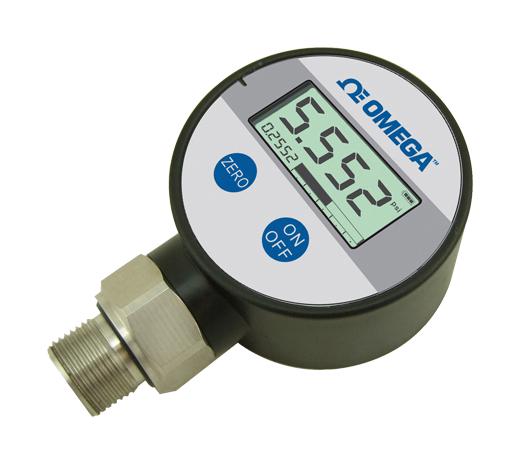

OMEGA DPG108005G digital pressure gauge
The DPG108 is a battery-powered digital pressure gauge designed for easy on-site installation. It features a high-precision piezo-resistive sensor, amplified by a low-drift amplifier, and displays results on a backlit LCD. Suitable for measuring gases and liquids compatible with stainless steel, it offers a measuring range of -0.1 to 100 MPa, with multiple engineering units including psi, bar, kPa, and kg/cm². Its durable design includes IP65/IP68 ratings, automatic maximum pressure recording, and an auto shut-off feature for efficient power use, making it reliable for industries like water, petroleum, and chemical processing.
OMEGA DPG108005G digital pressure gauge Specifications:
- Measuring Range: -0.1 to 100 MPa
- Engineering Units: psi, bar, kPa, MPa, kg/cm²
- Overload Pressure: 150% to 200%
- Pressure Type: G/AID
- Stability: <0.1% FS per year
- Power Supply: Battery operated
- Display: 4 digits, backlit LCD
- Accuracy Range: 20.25% for gauge pressure, 40.5% FS for others
- IP Rating: IP65 / IP68 with Silicone case
- Operating Temp: -20°C to 70°C
- Relative Humidity: 29%
- Thread Size: V4 NPT
- Thread Material: Stainless steel
- Sampling Rate: 4 times/sec
- Dimensions: Compact design for portable use
Buy the Omega DPG108 – Accurate Digital Pressure Gauge for Industrial Monitoring
Purchase the Omega DPG108 digital pressure gauge online today and enjoy fast delivery, superior accuracy, and durable design suitable for water, petroleum, and chemical industries. This portable, battery-powered device features a high-resolution backlit LCD, multiple engineering units, and robust IP ratings, ensuring long-lasting performance and reliable measurements in various industrial applications. With automatic maximum pressure recording and adjustable auto shut-off, the DPG108 provides convenience and efficiency for professionals requiring precise pressure data in field and laboratory settings.
Buy Omega DPG108 now and experience reliable performance with high precision measurements suitable for demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA DPG108005G?
You can click on the BUY or RFQ button to purchase DPG108005G from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG108005G?
You can download the DPG108005G datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG108005G?
OMEGA
