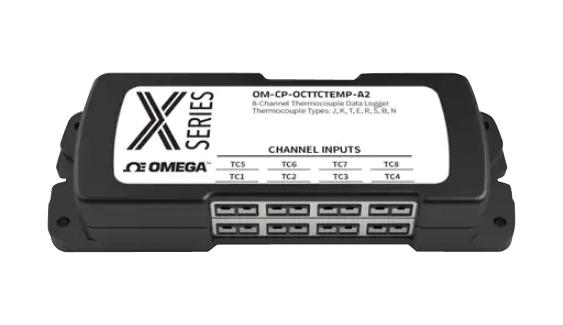

OMEGA OMCPOCTTCTEMPA2 Thermocouple Data Logger
The OM-CP-TCTempX series is an 8-channel thermocouple data logger designed for remote temperature monitoring and multi-point measurements. It features a high memory capacity, allowing for up to 262,016 readings per channel at a sampling rate of up to 4Hz. Each channel supports individual cold junction compensation for improved accuracy and response time, and channels can be named up to ten characters for easy identification. The device can accept various thermocouple types, including J, K, T, E, R, S, B, and N, and is compatible with Windows XP SP3, 7, 8, and 10. It operates on an external power supply or a user-replaceable 9V lithium battery, which typically lasts 18 months. The rugged, black anodized aluminum enclosure measures 2.70 inches x 7.25 inches x 1.22 inches and weighs 368 grams. It supports configurable start modes (pushbutton or programmable), open channel detection, and automatic annotation if a probe is removed during logging. Data can be downloaded via USB-A to Micro USB cable and analyzed with free OM-CP PC software. The device is ideal for various applications requiring continuous or periodic temperature data collection with minimal maintenance.
OMEGA OMCPOCTTCTEMPA2 Thermocouple Data Logger Specifications:
- Number of Channels: 8
- Sampling Rate: Up to 4 Hz
- Memory Capacity: 262,016 readings per channel
- Thermocouple Types: J, K, T, E, R, S, B, N
- Input Resistance: Max 1000 Ω, recommended less than 100 Ω
- Temperature Range: -270 °C to +760 °C depending on thermocouple type
- Temperature Resolution: 0.01 °C (0.018 °F)
- Calibration: NIST traceable; automatic recording of calibration date
- Battery: 9 V lithium, user-replaceable, typical 18 months
- Power Supply: External power or 9V battery
- Enclosure: Black anodized aluminum, size 2.70 x 7.25 x 1.22 inches (68.5 x 184.2 x 31.0 mm)
- Weight: 368 g
- Dimensions vary: 4-channel, 8-channel, 12-channel, 16-channel models
- Communication: USB-A to Micro USB cable, compatible with Windows XP, 7, 8, 10
- Start Modes: Pushbutton or programmable delay up to 6 months
- Environmental: -20 °C to +60 °C (°F equivalents), 0-95% RH non-condensing
- Approvals: CE, ROHS
Buy the Omega Series TCTempX Temperature Data Logger: OMCPOCTTCTEMPA2
Purchase the Omega Series TCTempX thermocouple data logger online today. This versatile, high-capacity device offers precise temperature measurement across multiple points, with support for various thermocouple types, rapid data sampling up to 4Hz, and long-lasting battery life. Compact and durable, it’s ideal for remote and industrial environments, providing automatic calibration, open channel detection, and individual channel naming for easy identification. Secure your temperature data collection needs efficiently with a reliable, easy-to-use online solution.
Buy Omega Series TCTempX 8-channel thermocouple data logger now and experience unmatched reliability and real-time temperature monitoring.
