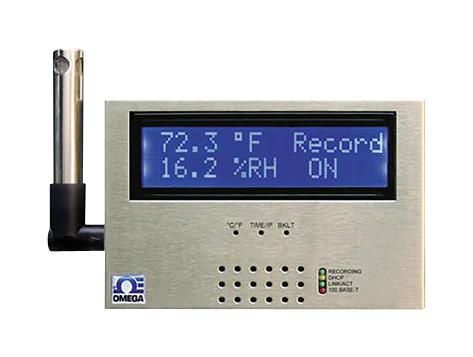

OMEGA ISDTH5 Environmental Data Logger
The Omega ISD-TH-5 is a robust temperature and humidity data logger designed for remote environmental monitoring in critical facilities like laboratories, data centers, and museums. It features an industrial probe with a 3-meter cable, Web-based interface with no software needed, and real-time data display with charting capabilities. The device records temperature, relative humidity, and dew point, stores data on a 2GB SD card for up to seven years at 10-second intervals, and provides alarms via email and text. It includes relays for local alerts, a 32-digit LCD, and backup battery for continuous operation during power failures, ensuring reliable environmental control.
OMEGA ISDTH5 Environmental Data Logger Specifications:
- Temperature Range: -40 to 124°C (-40 to 255°F), accuracy ±0.5°C (5 to 45°C), optional extended range with industrial probe
- Humidity Accuracy: ±2% for 10 to 90%, ±3% for 5 to 10% and 90 to 95%, optional NIST calibration available
- Sensor Response Time: 5 to 30 seconds, repeatability ±0.1°C/0.1% RH, resolution 0.1°C/0.1% RH
- Display: 32-digit LCD (4.8 x 9.7 mm)
- Data Storage: 2GB SD card, approx. 7 years at 10 sec intervals
- Connectivity: Ethernet RJ45, TCP/IP, DHCP, SNMP, HTTP, Telnet
- Relays: Two 1.5A relays for alarms, contact inputs for external sensors
- Power: 9 to 12 Vdc, 100-240 Vac, backup 9V alkaline battery for 2 days
- Dimensions: 130.2 mm (5.13 inches) x 33.3 mm (1.31 inches)
- Materials: SS 304 case, wall mount option
- Environmental Rating: Indoor use, operating temperature 0 to 60°C (32 to 140°F)
Buy the Buy Omega ISD-TH-5 Part Number ISDTH5 Online
Purchase the Omega ISD-TH-5 environmental data logger online today for precise remote monitoring of temperature, humidity, and dew point. Equipped with industrial probe, real-time web interface, and alarms via email or SMS, it’s ideal for laboratories, museums, and HVAC systems. Comes with a 2GB SD card that stores up to seven years of data at 10-second intervals. The device includes relays for local alarms, backup battery power, and easy Web setup, providing a dependable solution for critical environment management.
Order your Omega SeriesISD-TH-5 environmental data logger today and ensure accurate, remote monitoring of your critical environments with reliable alarm features.
